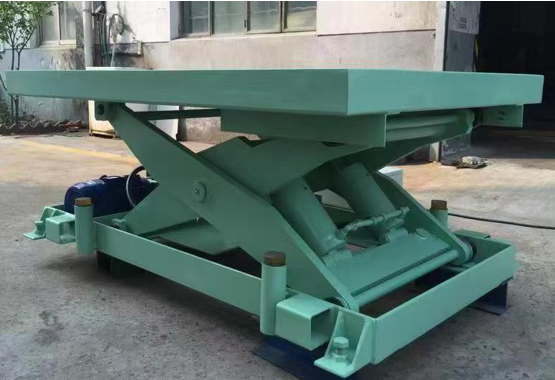

Vertical Fixed Loading Platform

Rated Load: 2000 kg Lifting Height: 1300 mm Minimum Height: 500 mm Platform Dimensions: 2000 × 3000 mm Motor Power: 1.5 kW / 380 V / Three-phase Overload Alarm: The equipment automatically stops and alarms when exceeding the rated load, preventing operation. Foundation Pit: Waterproofing required to prevent water ingress (pit dimensions to be constructed according to drawings). Painting: Anti-rust primer + topcoat (color as per factory standard).

TSJ (1-1.22) Basic Configuration / Major Dispositions
	Component Name	Material/Configuration	Supplier/Brand
1	Table Material	8# channel steel + 4 mm checkered plate	Shanghai / Baosteel
2	Arm Frame Material	120×50×5 rectangular tube	Self-manufactured
3	pump	2.2KW 380V 50HZ	Wuxi Haikeman Integrated Pump Station
4	Pump	7.8mm/r
5	Valve	DC-24V
6	Pin Shaft	Quenched and tempered	（HB210-250）
8	Hydraulic Cylinder	Φ70×2, accuracy F8	Wuxi Dajin
9	Sealing Element	NOK dual-sealing technology	Japan
10	Hydraulic Hose	High-pressure double-layer steel wire rubber hose	Northwest Rubber, China
11	Hydraulic Medium	32# anti-wear hydraulic oil	Shell, China
12	Control System	24 V safety low-voltage control system	Zhejiang Chint
13	Paint	Anti-rust primer + professional metal paint	Changzhou / Guanghui
14	Wearing Parts	SF-2 oil-free wear-resistant bearings embedded at vulnerable parts with oil injection holes	Jiaxing, Zhejiang
17	Color	Customer's choice
18	Control	24 V self-locking control
20	Overload Alarm (Safety Configuration)	Hydraulic relay
