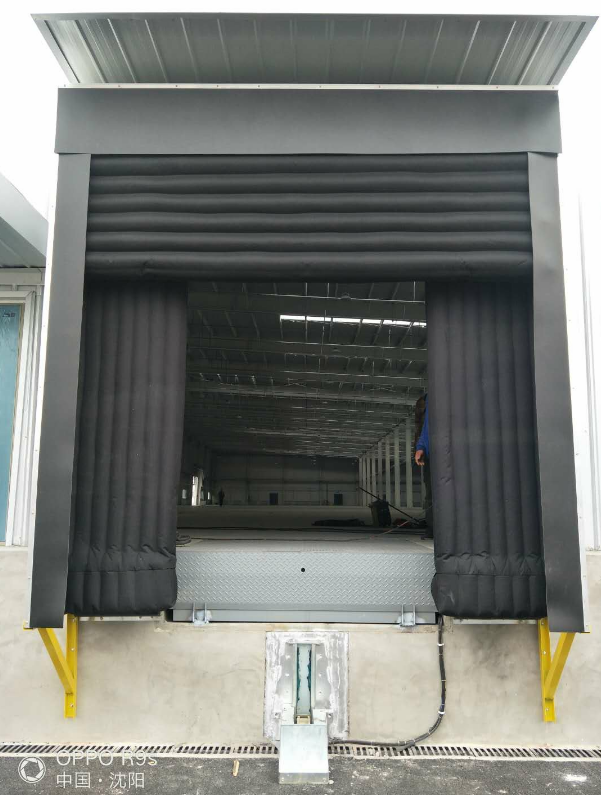

Vertical Fixed Hydraulic Loading Dock with Dock Leveler and High-Speed Airbag Shelter System
Vertical hydraulic loading platform with airbag dock shelter, 2000 kg load capacity, 1300 mm lift height, overload protection, operating temperature –35°C to +70°C, ideal for logistics and industrial loading applications.
Width: 3400–3600 mm
Height: 3400–3800 mm
Top airbag extension: 1000 mm
Side airbag extension: 800 mm
Top sunshield: 500 mm
Side sunshield: 200 mm
Profile color: Aluminum natural (RAL 9006)
Door panel color: White (RAL 9003)
Control method: Switch / Platform control unit
Control system: Schneider
Power supply: Single-phase or three-phase, 220/380V, 50Hz
Power: 0.35 kW
Control unit: External
Control module protection rating: IP54
Average airbag inflation time: 40 seconds
Operating temperature: –35°C to +70°C
PVC curtain: 3.6 kg/m
Thickness: 3 mm
Unit weight: 3.6 kg/m
Airbag: 0.5 mm
Material: Cordura 1000
Thickness: 0.5 mm
Unit weight: 0.4 kg/m
Maximum tensile strength: > 290 N/mm²
Foam board
Thickness: 40 mm
Inner/outer color: White (RAL 9003)
