Side-Loading Hydraulic Dock Leveler | Heavy-Duty Industrial Dock Ramp System
The Side-Loading Hydraulic Dock Leveler is engineered for high-efficiency loading and unloading operations in demanding industrial environments. Designed with a fully hydraulic-electric control system and reinforced steel structure, it ensures stable performance, high load capacity, and long-term durability. Ideal for warehouses, logistics centers, and manufacturing facilities, this dock leveler improves operational safety, reduces loading time, and enhances overall dock efficiency.
⚙️ Key Features & Advantages
✅ Full Hydraulic Control System
The entire mechanism, including the platform and lip plate, is operated through a fully hydraulic-electric system with an inverted dual-cylinder design, ensuring smooth and reliable performance.
✅ Heavy-Duty Structural Strength
• Platform constructed with 8mm anti-skid patterned steel plate

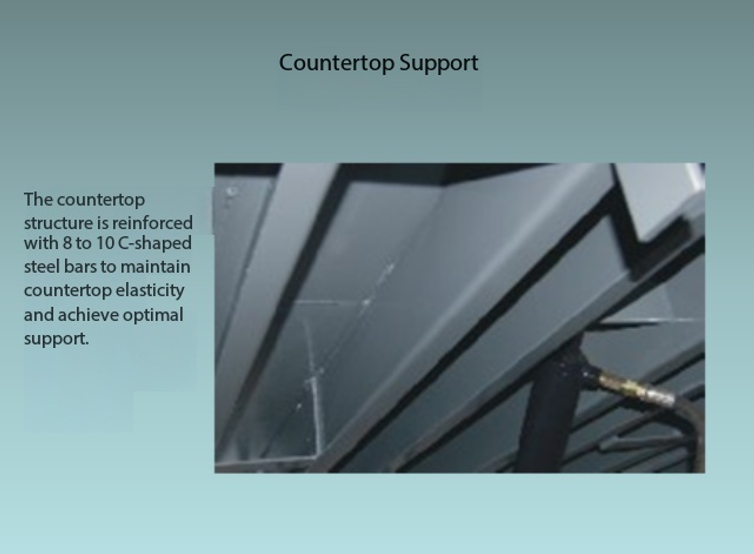

• Reinforced with 8 C-shaped steel beams for double support strength
• Designed for long-term heavy-duty industrial use
✅ High Load Capacity
• Rated dynamic load: ≥ 6.8 tons
• Static load capacity: 13.6 tons
Ensures safe handling of heavy cargo and frequent operations.
✅ Advanced Safety System
• Hydraulic speed control safety valve
• Safety support system for maintenance
• Hydraulic safety lock valve
• Emergency power cut-off control
👉 Minimizes operational risks and protects personnel.
✅ Efficient and Easy Operation
• One-button control system
• Smooth lifting and lowering
• Adjustment time ≤ 30 seconds
✅ Durable Lip Plate Design
• Length: 400mm
• Thickness: 16mm solid steel
• Anti-skid surface for enhanced safety

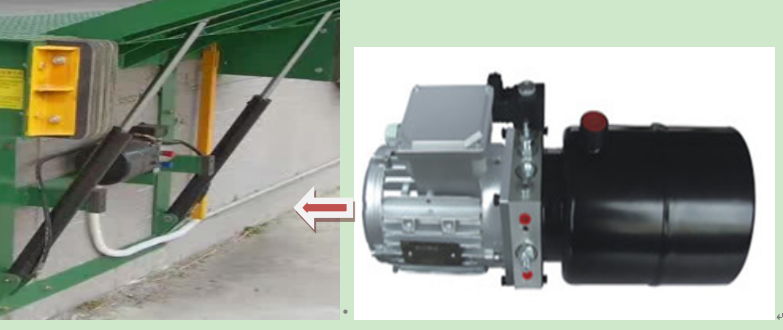

✅ Reliable Hydraulic Components
• Equipped with Bucher (Switzerland) motor
• NOK sealing components
• Hydraulic pressure: 120 bar
✅ Easy Maintenance Design
• Bottom structure designed for easy cleaning
• Maintenance support bar included
🛠️ Technical Specifications
Item
Specification
Model
DL-H
Type
Side-Loading Hydraulic Dock Leveler
Load Capacity
Dynamic 5000 kg / Static 7000 kg
Rated Capacity
Dynamic ≥ 6.8T / Static 13.6T
Platform Dimensions (W×L×H)
2130 × 660 × 200 mm
Platform Plate
8mm Baosteel anti-skid patterned steel
Lip Plate
16mm solid steel, 400mm length
Frame Structure
8 C-shaped reinforced beams
Hinges
10mm thick
Shaft Diameter
28mm
Hydraulic System
Bucher motor (Switzerland)
Hydraulic Pressure
120 bar
Oil Tank Capacity
5L
Adjustment Range
+350mm / -300mm
Working Range
+300mm / -300mm
Adjustment Time
≤ 30 seconds
Power Supply
380V / 3 Phase / 50Hz / 0.75KW
Control System
One-touch operation with power cut-off
Control Box
24V low-voltage explosion-proof
Safety Features
Safety lock valve, support bar, auto-lock lip
Operating Temperature
+50°C to -25°C
Surface Treatment
Sandblasting + anti-rust coating (0.1mm)
Color Options
Gray or Black
Bumper Blocks
200 × 300 × 100 mm (1 pair included)
Brush Seal
Not included
Copy table
📦 Standard Configuration
• Hydraulic dock leveler unit
• One push-button control system
• One pair of heavy-duty rubber bumper blocks
• Maintenance support bar
• Hydraulic safety lock valve
• Adjustable speed hydraulic valve
🏭 Application Scenarios
This dock leveler is widely used in:
• Warehouses
• Logistics and distribution centers
• Manufacturing plants
• Freight terminals
💡 Why This Dock Leveler Improves Your Operation
Instead of dealing with inefficient manual loading systems or unstable platforms, you get:
• Faster truck turnaround time
• Reduced labor intensity
• Improved safety compliance
• Lower maintenance costs
👉 A smarter investment for long-term operational efficiency.
