Leveraging world-leading permanent magnet synchronous direct drive motor technology and modern aero wing technology, the permanent magnet direct drive HVLS energy-saving ceiling fan rotates slowly via high-diameter blade, so as to drive air flow in all directions and generate natural circulating air in broad area. Air flow in vast coverage accelerates volatilization of sweat on the surface with air died and dehumidified and stratification of cold and heat cleared, thus resulting in natural ventilation and cooling. Compared with traditional HVAC and small-sized high-speed draught fans or asynchronous motor-reducer first-generation industrial fans, it has unrivalled virtues of high efficiency, energy conservation, mute, presentability, broad coverage, simple structure, maintenance free, long service life, etc. , which is hailed as the most cost-effective large-space ventilation and cooling solution.
The fan in low-speed operation gives rise to air circulation in vast area, for ventilation inside and outside the space. With natural air mildly cooling people and devices, it brings down room temperature and blows away dust and smoke in the air, for the sake of environmental protection.
Adjustment of air humidity and maintenance of dryness
Bring down indoor air humidity and keep dry, in case goods get damped and mouldy and devices get rusted.
High and adjustable air capacity and broad coverage
With coverage of 1500 sqm the maximum, single GF73 fan can substitute nearly 48 industrial claw fans with diameter of 750mm.
High cost performance
The least investment yields the best effects. The installation of air conditioning is a packet in large space, but general ventilation equipment works not well. In contrast, GF fan users can recover the installation cost by electricity charges saved in the first year.
High efficiency and energy conservation
GF fans feature utterly low power consumption. GF73 with the largest diameter consumes less than 1 kw of electricity per hour on average, which is an energy-saving, carbon-free and nature-friendly expert.
Substitute for cool air conditioning
The fan engages people in temperature difference of 5-10℃, which rotates with traditional air conditioning in some occasions. Therefore, it can replace the central air conditioning to a certain extent.
Air circulation in all directions and angles, ventilation with no dead zone
Air is thrust to conically flow top down towards the ground and to horizontally flow on the ground. In case of any lateral obstruction or horizontal air flow of neighboring fans, it is pushed upward to the roof, so as to strengthen air circulation in all directions and angles.
Exchange with outdoor fresh air and smoke and dust removal for creating a better air environment
Air can rapidly exchange with outdoor fresh air via doors/windows or fans atop. With less dirty and muggy air indoors, the indoor air environment is cleared.
Easy installation, safety and presentability
Mounted 4.5m above the ground, the fan is securely clamped on the structural beam of roofing. With no impact on any normal progress in any ground working area, it is nice-looking, simple, elegant, secure and solid.
Patented cooling structure

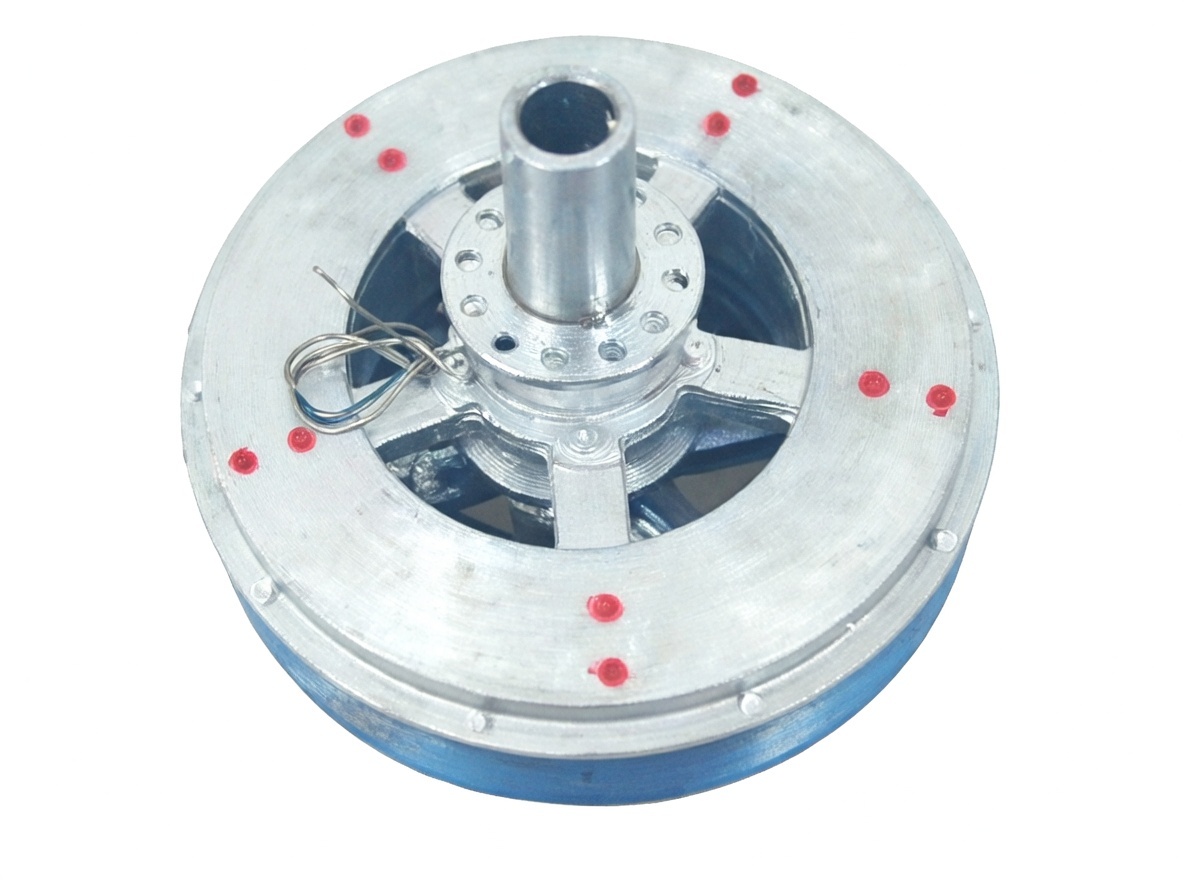

The fan is arranged with a proprietary high-efficiency permanent magnet direct drive motor that weighs 45KG. The motor is lighter with output in low speed but high torque.
Reducer free
The reducer-free motor with much lower mounting height accommodate occasions of various dimensions.
Lifelong maintenance free
In need of no regular refueling or lubrication, the motor is designed for long-term use upon installation.
Ultra-low temperature rise
The unique 3D convective heat dissipation structure with ultra-low temperature rise makes sure of no demagnetization.
Long service life
The long service life of motor is guaranteed by enamelled copper wires with thick film and double row angular contact ball bearings for high-load use.
(Note: GF73 prototype made in the Company's workshop has temperature rise of 45K in measurement)
Anti-fall design
Bottom up the motor shaft is stepped anti-fall design with the bottom wider than the top. The motor shaft is directly connected to the mounting frame, in case the rotary part of the motor falls.
Energy-saving design
With higher efficiency and broader high-efficiency range, the motor is more energy-saving than average asynchronous motor-reducer unit, which consumes less than 1kw of electricity per hour.
Stable operation
The fan is started up and shut down smoothly, with no jitter or impact therein. With adjustable air quantity, the fan outputs sina wave and makes stable operation. Leveraging unique rate tracking technology, the fan be steadily restarted during ongoing operation.
Silence
Free from mechanical transmission, the fan adopts high-precision, heat-resistant and heavy-load silent bearings; the muted permanent magnet motor runs quietly with no mechanical noise made.
Technical parameters of industrial fan
DCHVLS FAN 7300-6: 7300mm, 6 blades, 1.5kw, 55 RPM, 108kg, 13300m³/min, covers 850m²
DCHVLS FAN 7300-5: 7300mm, 5 blades, 1.5kw, 60 RPM, 98kg, 13080m³/min, covers 800m²
DCHVLS FAN 6700-6: 6700mm, 6 blades, 1.5kw, 60 RPM, 100kg, 12350m³/min, covers 670m²
DCHVLS FAN 6700-5: 6700mm, 5 blades, 1.5kw, 65 RPM, 93kg, 12120m³/min, covers 650m²
DCHVLS FAN 6100-6: 6100mm, 6 blades, 1.1kw, 70 RPM, 85kg, 11200m³/min, covers 550m²
DCHVLS FAN 6100-5: 6100mm, 5 blades, 1.1kw, 75 RPM, 80kg, 11000m³/min, covers 520m²
DCHVLS FAN 5500-6: 5500mm, 6 blades, 1.1kw, 75 RPM, 80kg, 10530m³/min, covers 460m²
DCHVLS FAN 5500-5: 5500mm, 5 blades, 1.1kw, 80 RPM, 75kg, 10370m³/min, covers 420m²
DCHVLS FAN 4900-6: 4900mm, 6 blades, 0.75kw, 70 RPM, 75kg, 9660m³/min, covers 370m²
DCHVLS FAN 4900-5: 4900mm, 5 blades, 0.75kw, 75 RPM, 70kg, 9310m³/min, covers 330m²
DCHVLS FAN 4200-6: 4200mm, 6 blades, 0.75kw, 80 RPM, 70kg, 9130m³/min, covers 300m²
DCHVLS FAN 4200-5: 4200mm, 5 blades, 0.75kw, 85 RPM, 65kg, 8810m³/min, covers 260m²
DCHVLS FAN 3600-6: 3600mm, 6 blades, 0.55kw, 80 RPM, 42kg, 5920m³/min, covers 200m²
DCHVLS FAN 3000-5: 3000mm, 6 blades, 0.4kw, 90 RPM, 38kg, 5165m³/min, covers 140m²
DCHVLS FAN 2500-6: 2500mm, 6 blades, 0.3kw, 100 RPM, 35kg, 4530m³/min, covers 90m²
DCHVLS FAN 2000-6: 2000mm, 6 blades, 0.2kw, 120 RPM, 32kg, 3900m³/min, covers 60m²
Diagram of airflow
Semi-open space
In a semi-open factory, the product can drive air to move downward and make fresh air outside fill the negative pressure area atop, so as to secure abundant supply of cool and fresh air in the working area.
Multi-fan parallel operation
In large space, it is hard to cool all corners by a single fan. A plurality of fans reasonably arranged in the space can generate air circulation to cool the space and refresh air indoors.
Enclosed space
Air flows slowly in an enclosed workshop, where people may be easily sweltered. The vast inflow of air with no dead zone inducing air circulation in the enclosed space can relieve people from feeling muggy unbearably.

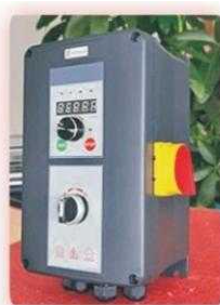

Controller
Input voltage: three-phase 380V or single-phase 220V
Input frequency: 50/60Hz
Power: 1.5KW/750W

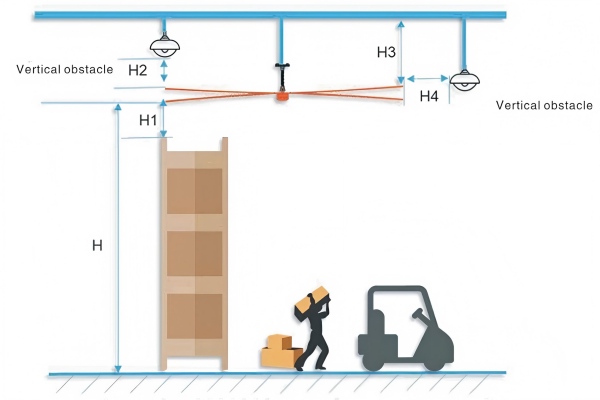

Diagram of installation
HVLS7300: H 5-12m, H1 ≥0.3-0.4m, H2 ≥0.35-0.4m, H3 ≥0.8m, H4 ≥0.3m
HVLS6100: H 5-12m, H1 ≥0.3-0.4m, H2 ≥0.35-0.4m, H3 ≥0.8m, H4 ≥0.3m
HVLS5500: H 5-12m, H1 ≥0.3-0.4m, H2 ≥0.35-0.4m, H3 ≥0.8m, H4 ≥0.3m
HVLS4900: H 3.6-6m, H1 =0.3-0.4m, H2 ≥0.35-0.4m, H3 ≥0.6m, H4 ≥0.3m

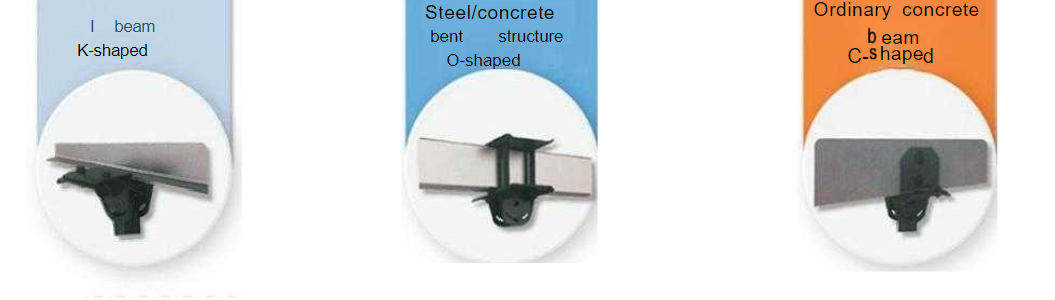

Hoisting of industrial fan
Depending on building structure at the installation site, e. g., steel structure, concrete structure or truss structure, we tailor hoisting solutions.

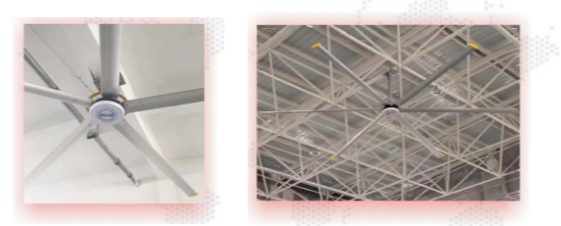

Range of application (sample)
The environment-friendly product is intended for natural cooling with flow of fresh air in all sorts of industrial or agricultural occasions, public spaces, business occasions and other large spaces of the like.
Product and service warranty
HVLS FAN series ultra-large permanent magnet direct drive HVLS energy-saving ceiling fan is an epoch-making product with total supremacy on international market, with patented homemade permanent magnet direct drive motor at the core. Ensuring output of high torque while maintaining ultra-low temperature rise, it addresses a globally intractable problem of overheating the external rotor permanent magnet direct drive motor. In theory, the fan's main motor can work for over 15 years, under no care or maintenance.
Permanent Magnet Synchronous Motor Industrial Fans
@font-face { font-family: "Times New Roman";} @font-face { font-family: "宋体";} @font-face { font-family: "Arial";} @font-face { font-family: "Calibri";}
| | Parameters and configurations |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | Industrial Fan Dedicated Permanent Magnet Synchronous Motor |
| | |
| Adapt to the power supply | |
| Work environment temperature | |
II. Drive Configuration
| | | |
| Unique dedicated permanent magnet synchronous motor | Industrial Fan Dedicated Permanent Magnet Synchronous Motor ▲ The maximum diameter at the bottom of the motor shaft is 68mm, and the minimum diameter at the top is 54mm, featuring a stepped shaft design that surpasses the同行粗大 diameter of peers. All motor components are subjected to the stepped shaft, ensuring safety against falling and eliminating any worries about detachment. ▲ Hollow hub cooling structure, ultra-low temperature rise, never demagnetized, never burns the motor. ▲ Transparent lower cover, air-cooled design, elegant and generous. ▲ Heavy-duty double row angular contact bearings, large air gap design, ensuring long-term operation of industrial fans without causing rotor and stator contact (commonly known as sweeping cylinder phenomenon). ▲ New energy vehicle ultra-thin high power density stator design, exceeding 305NM of high torque. ▲ Sine wave electromagnetic scheme design, with high carrier frequency inverter control, can achieve silent operation, with the lowest noise reaching below 38DB. ▲ Bearing chamber far from the rotor and stator design, almost no temperature rise, no grease high-temperature aging phenomenon, can achieve long-life bearing operation. | |
| | |
| | |
| | |
III. Controller Configuration
| | | |
| Industrial Fan Dedicated Controller | 1. Meets requirements for various complex operating conditions (high temperature, dust, fumes, long-term operation, etc.); 2. Built-in radio frequency interference filter, with the function of suppressing radio interference; 3. Ground fault protection, over-temperature, over-current, short circuit, phase failure protection functions; 4. Over-current automatic speed reduction operation function; 5. IP55 protection level, stepless speed regulation. | |
IV. Description of Main Mechanical Components
| | | |
| | Adopting Q460 high-strength, high-toughness alloy steel material for one-piece molding by die pressing, there is absolutely no risk of loosening and breaking. | |
| Universal suspension fitting | 8mm high-strength alloy steel + 8 sets of M14 high-strength anti-loosening screws, non-deformation, non-loosening, non-slipping | |
| | 6063A aluminum-magnesium alloy material with T6 process treatment, surface anodized for corrosion resistance, computer-simulated optimized aerodynamic streamline wing design, fan blade width of 185mm, large air volume, low resistance, high efficiency, stable operation, equipped with four anti-fracture reinforcement ribs, absolutely no risk of breakage. | |
| | Aerodynamic Tail Wing Design. When the blade is in motion, it can effectively eliminate tip vortices, reduce energy loss, and increase the stability of the fan operation. | |
| | High-intensity, high-toughness alloy steel fabrication. Interconnect and inter-protect all blades as a whole to enhance the safety of the fan. | |
| | 10.9 grade or higher fastening screws + loosening nuts, ensure that each connection is secure and not loose. | |
| | Configure a 10mm diameter anti-loosening steel wire rope Configure a 6mm diameter balance, anti-loosening steel wire rope with double wire rope clips for the wire joint. | |
V. Explanation of Safety Precaution Measures
| Safety measures and devices | |
| Anti-loosening steel wire | Prevent the risk of loosening and detachment between the universal lifting fittings and the building. |
| Universal suspension fitting | Prevent the transmission of fan vibration to the building, which could cause loosening, displacement, and risk of detachment. |
| | Prevent the risk of fan swinging, swaying, and tilting. |
| Wire rope joint double card | Prevent the loosening of steel wire ropes |
| | Prevent the risk of blade fracture and detachment |
| | Prevent the risk of blade fracture |
| Integral High-Strength Impeller Disc | Prevent the risk of impeller disc fracture and loosening |
| Prevent the risk of impeller disc fracture and loosening | Prevent the risk of impeller disc fracture and loosening |
| High-strength anti-loosening nut | Prevent the risk of nut loosening and detachment |
| | Prevent the risk of nut loosening and detachment |
| Controller unexpected alarm, shutdown | Controller unexpected alarm, shutdown |
| Product Liability Insurance | All products are insured by the Product Liability Insurance of People's Property Insurance Company Limited. |
