Model 100 Red and Green 2-Light Signal Lamp | DC24V LED Traffic Signal Light

Professional Model 100 Red and Green 2-Light Signal Lamp with 40 LEDs per color. DC24V operation, IP53 protection, 100,000 hours service life. Suitable for industrial signaling, warning, and control applications. Easy horizontal or vertical installation.

Intelligent Traffic Control

2. Product Parameters / Key Specifications

Parameter	Specification
Product Dimensions	300 × 150 × 85 mm
Number of LEDs	40 red and 40 green
Red Wavelength	620–625 nm
Green Wavelength	500–505 nm
Service Life	100,000 hours
Shell Material	PC (Polycarbonate)
Operating Temperature	-40°C to +60°C
Protection Level	IP53
Operating Voltage	DC24V
Visual Distance	1–500 m
Installation	Horizontal or Vertical

3. Product Features

Feature	Description

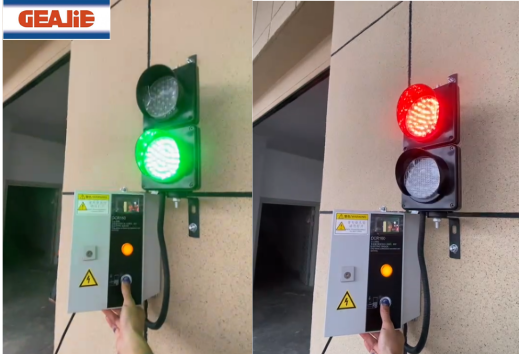

Bright and clear red/green dual-color indication	High-visibility red and green dual-color LED indication
Long service life	Up to 100,000 hours
Wide operating temperature range	-40°C ~ +60°C
IP53 dust and water resistance	Dust and water resistance
Compact and durable PC housing	Compact and durable PC (Polycarbonate) housing
Easy installation	Both horizontal and vertical orientations
Low power consumption	Low power consumption with high visibility

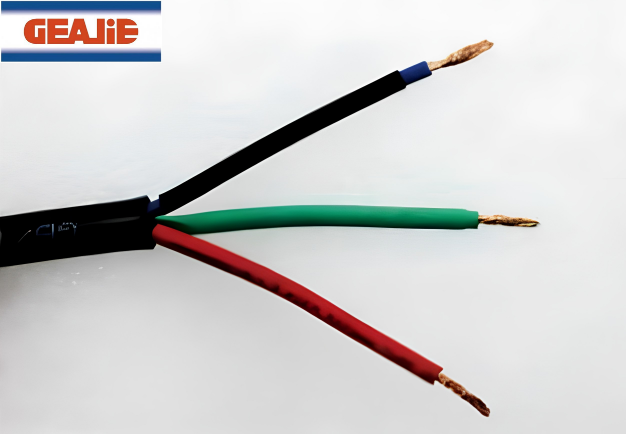

4. Wiring Instructions

No.	Wiring Description
1	Long red wire – Common positive terminal
2	Short red line – Red light negative pole
3	Short green line – Green light negative pole

Power Connection: DC24V

5. Accessories List

Item	Quantity
Lamp unit	1
L-shaped bracket	2
M10×25 screw rod	2
Certificate of Conformity	1
Instruction Manual	1

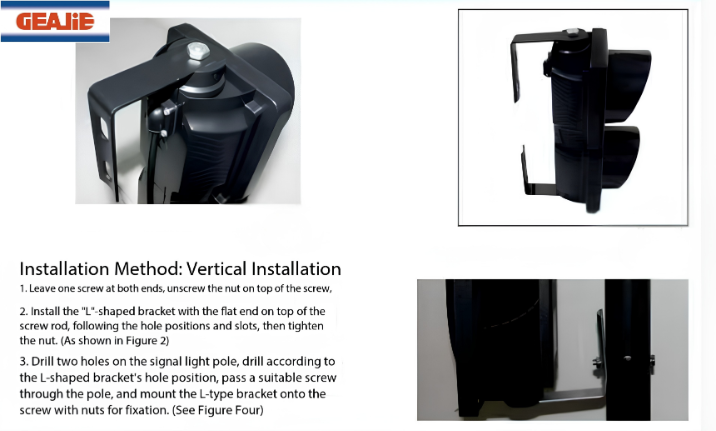

6. Installation Method (Vertical Installation)

Step	Description
1	Leave one screw at both ends, unscrew the nut on top of the screw.
2	Install the L-shaped bracket with the flat end on top, aligning with the holes and slots, then tighten the nuts.
3	Drill two holes on the signal light pole; drill according to the L-shaped bracket’s hole position, pass a suitable screw through the pole, mount the L-type bracket on the screw, and secure with nuts.

Supported Installations: Horizontal or Vertical

7. Precautions

No.	Precaution
1	This product has a plastic (PC) housing; do not apply excessive pressure to avoid damaging the housing.
2	Ensure correct wiring polarity before powering on.
3	Install in a location with good visibility for best performance.

8. Applications

Application Area

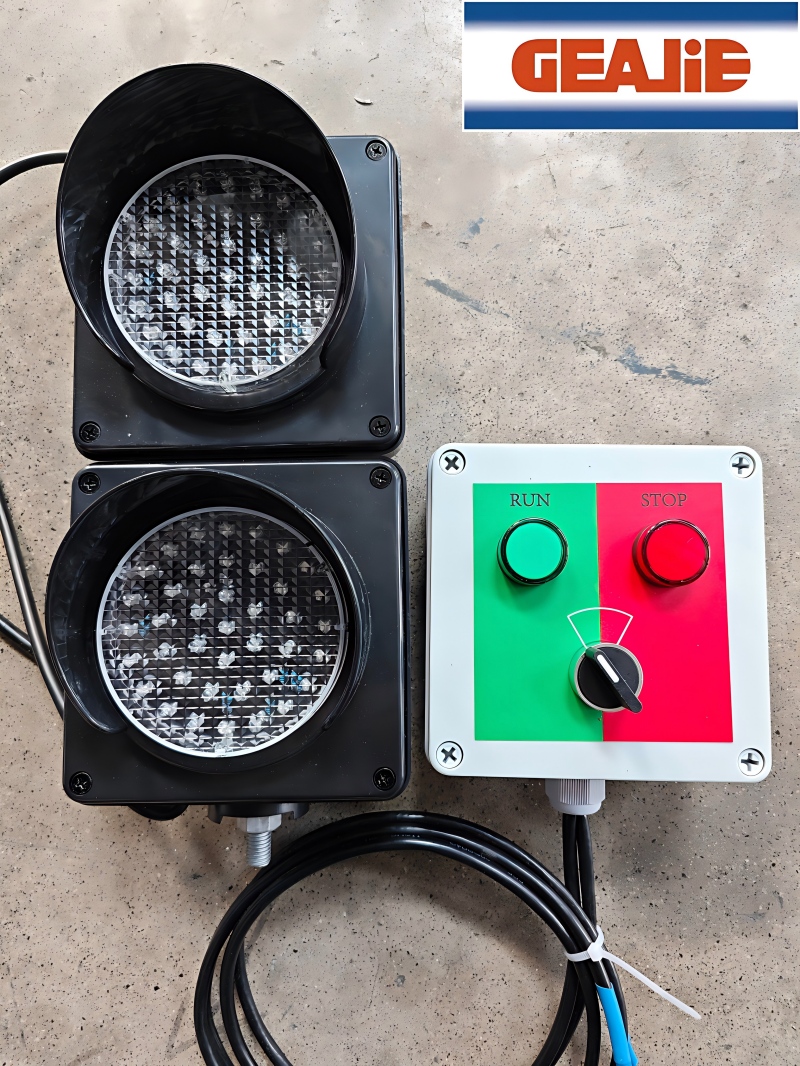

Industrial machinery status indication (running / stop / fault)
Warehouse and logistics signaling
Traffic control and warning systems
Equipment control panels
Tower cranes, elevators, and automated production lines
