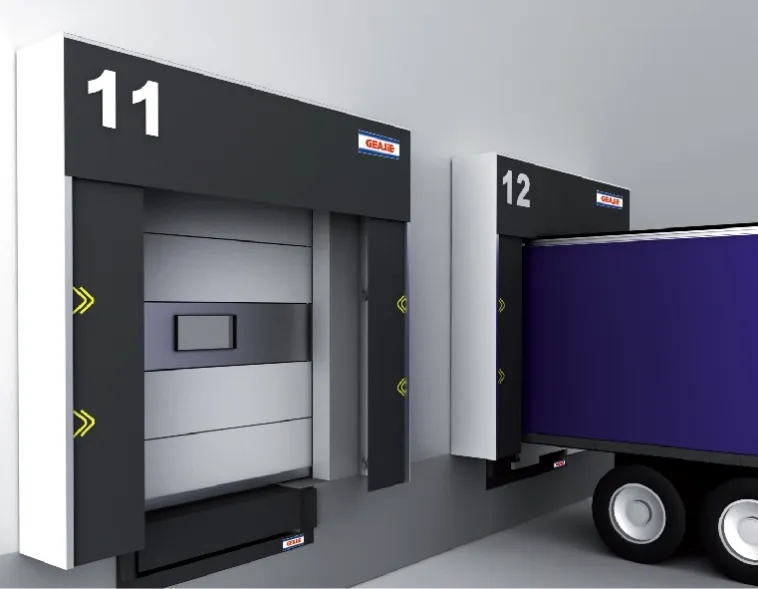

DSH Mechanical Dock Shelter

A retractable-frame dock shelter for mixed vehicle sizes, providing weather protection without compressing foam pads around the trailer.

DSH Mechanical Dock Shelter
A retractable-frame dock shelter for mixed vehicle sizes, providing weather protection without compressing foam pads around the trailer.
Primary keyword: mechanical dock shelter for loading bay Category: DOCK SYSTEM
Best-fit applications
• Mixed truck fleets • Distribution centers • High-cycle loading bays
Why this configuration
Wider vehicle envelope
Flexible side and top curtains work with a broader range of truck bodies than a compression foam seal.
Retractable structure
A parallel-linkage frame can move under contact and return after the truck departs.
Wall-load management
The retracting action is designed to reduce structural stress from imperfect docking.
Wear-resistant curtains
Reinforced PVC front sheets are selected for flexing, tear resistance and repeated trailer contact.
Technical specifications
Item: Current information Frame: Hot-dip galvanized steel, 60 x 30 mm profile Mechanism: Retractable parallel-linkage system Side / top fabric: 1 mm PVC-coated fabric, 750 g/m2 Front curtain: 3 mm reinforced PVC sheet Top / bottom strap: 1000 / 600 mm in current catalogue Opening and projection: Customized to project data Selection boundary: A dock shelter improves weather control while keeping trailer access open, but it does not create the same compression seal as a correctly matched foam or inflatable system.
Certification and patent documentation
• ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 management-system documents supplied by GEAJIE. • CE documentation supplied for the DL-H Dock Leveler; applicability to this product must be confirmed for the final project. • Gallery space is reserved for 16 patent certificate images before public publication.
Send these project inputs
• Truck width and height range • Door opening • Dock projection • Prevailing weather • Trailer door operation • Expected contact and cycle frequency
Request a project review
Email: ivywong@tsunmi.com: mailto:ivywong@tsunmi.com?subject=DSH%20Mechanical%20Dock%20Shelter%20project%20review WhatsApp: Discuss this project: https://wa.me/8615921487118

Related loading bay equipment

Hydraulic Dock Leveler Details

Planning a complete loading bay? These photos show our hydraulic dock leveler construction, not components of every product above. Review the platform, door and shelter together for your project.

open-hinge-design-dock-leveler-1000x1000

Side plate and hinge structure

Close-up view of the dock leveler side structure, hinge area, and steel construction before final confirmation.

dock-leveler-two-hydraulic-cylinders-1200x800

Hydraulic cylinder installation

The hydraulic cylinder layout, hoses, and underside structure are checked according to load capacity and working frequency.

dock-leveler-control-box-emergency-stop-1000x1000

Control box and safety parts

Control box, emergency stop, warning labels, and electrical configuration can be matched to the project power standard.
