Dock System

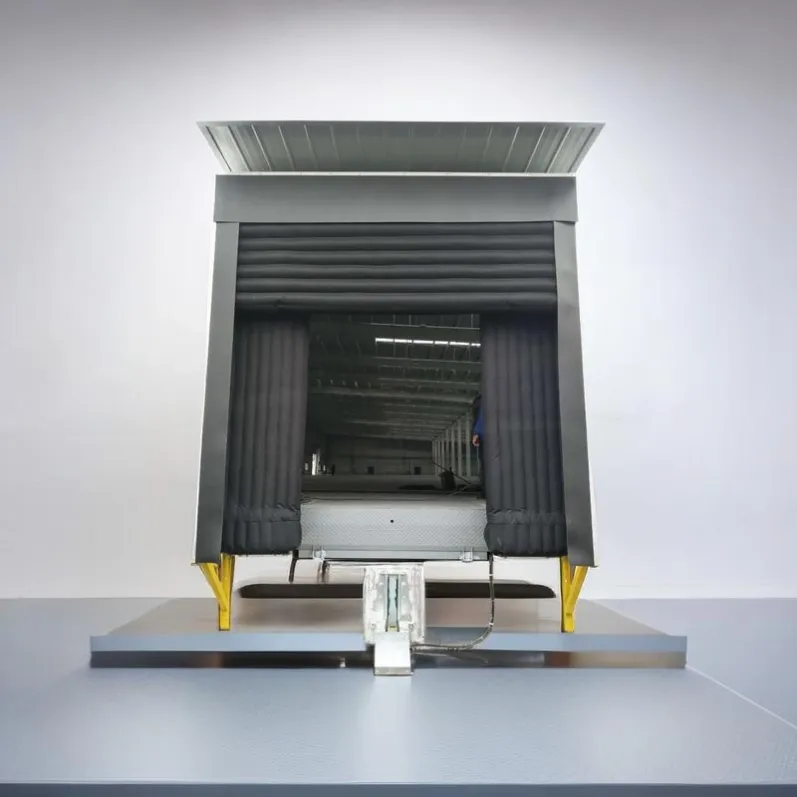

DSI Inflatable Dock Shelter

An air-inflated dock shelter that adapts around different truck bodies for high-seal cold-chain and controlled-environment loading bays.

DSI Inflatable Dock Shelter
An air-inflated dock shelter that adapts around different truck bodies for high-seal cold-chain and controlled-environment loading bays.
Primary keyword: inflatable dock shelter for cold storage Category: DOCK SYSTEM
Best-fit applications
• Cold storage • High-humidity facilities • Mixed truck fleets
Why this configuration
Adaptive sealing
Two vertical inflatable panels and one horizontal top panel close around varied truck body sizes.
Cold-chain focus
The system is designed for high-seal applications including cold, humid and corrosive environments.
Fast operating cycle
The current catalogue specifies approximately 15 seconds for inflation and 15 seconds for closure.
Automatic recovery
An integrated counterweight recovery mechanism retracts the panels after loading.
Technical specifications
Item: Current information Configuration: Two vertical panels plus one top panel Panel material: Air-inflated polyester fabric Inflation / closure: 15 / 15 seconds in current catalogue Power system: 380 V air-compressor system in current catalogue Opening and projection: Confirmed for the building and vehicle range Controls: Coordinated with the dock operating sequence Selection boundary: The best seal depends on the real truck envelope and docking position. Vehicle drawings or measured truck data are required before the inflatable panel sizes are approved.
Certification and patent documentation
• ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 management-system documents supplied by GEAJIE. • CE documentation supplied for the DL-H Dock Leveler; applicability to this product must be confirmed for the final project. • Gallery space is reserved for 16 patent certificate images before public publication.
Send these project inputs
• Smallest and largest truck body • Door opening • Dock projection • Temperature and humidity • Required sealing sides • Power and interlock sequence
