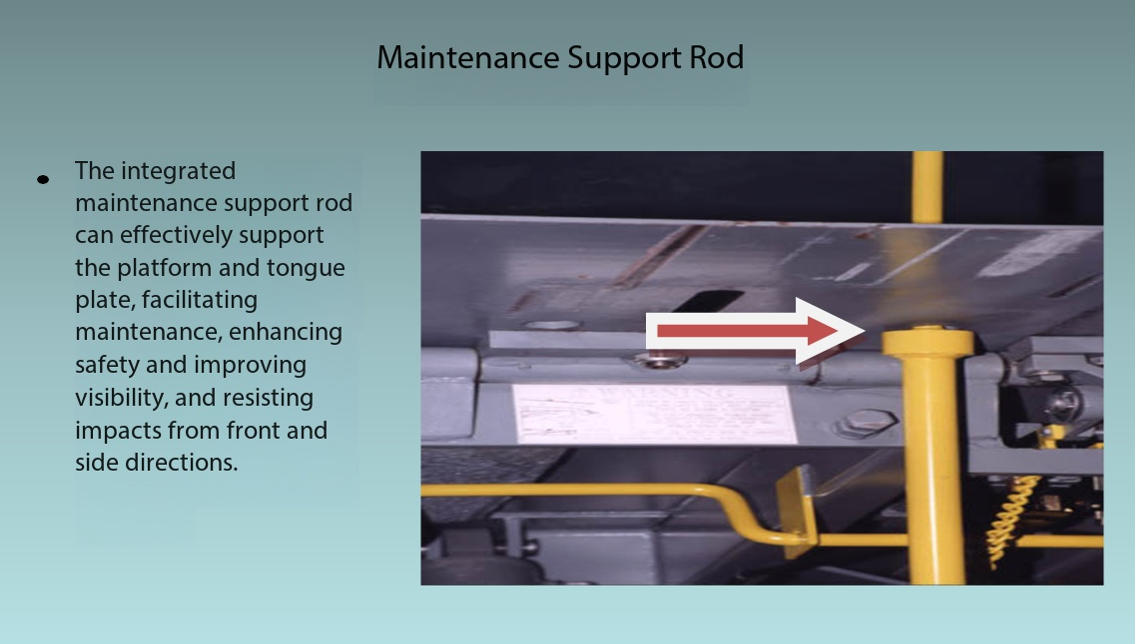

Maintenance Support Rod

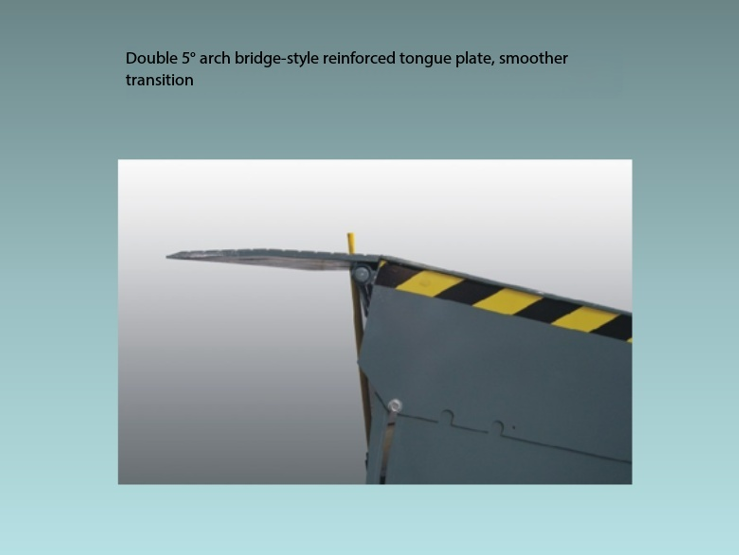

Double 5° arch bridge-style reinforced tongue plate
dock leveler (7)

Hydraulic Dock Leveler – Single Cylinder | Double-cylinder 2000×3000×600 | GEAJIE DL-H Series

This GEAJIE DL-H series hydraulic dock leveler is engineered for heavy-duty loading dock operations. Featuring a single inverted cylinder design with Swiss BUCHER full hydraulic control system (emergency stop included) and Japanese NOK seals, it ensures reliable and efficient performance. The unit is built with high-strength anti-skid steel — an 8mm thick Benxi steel deck and a 16mm thick solid tongue plate for enhanced durability. With a dynamic load capacity of 8,000 kg and static rating of 13,600 kg, it supports a working range of +350 mm above to -300 mm below dock level. Key safety features include a full-range toe guard, smooth transition design to prevent forklift impact, and a maintenance safety support bar. The integrated CPU control system with display monitors real-time operation status, fault codes, and system interlocks. Compact in structure, the unit measures 2000×3000×600 mm, fitting a pit size of 2030×3000×610 mm. Ideal for warehouses, logistics centers, and industrial facilities requiring dependable, high-frequency dock leveling solutions.

Contact Us

Dock Levelers Single cylinder | Double-cylinder hydraulic and 2000-3000-600

Adopt DL-H series hydraulic height adjustment plate.
The operation of the mechanism including the platform and the extension plate is completed by the BUCHER Swiss Bucher full hydraulic (with emergency stop function)-electric control, and the Japanese NOK seal assembly is designed with single oil cylinders inverted.

one cylinder


two cylinders

Equipped with a reliable hydraulic control speed safety valve, the descending speed can be adjusted according to the needs.
Both the board surface and the front tongue plate are made of high-strength anti-skid steel plate, and the table top is made of 8mm high-quality steel plate produced by Benxi Iron and Steel.

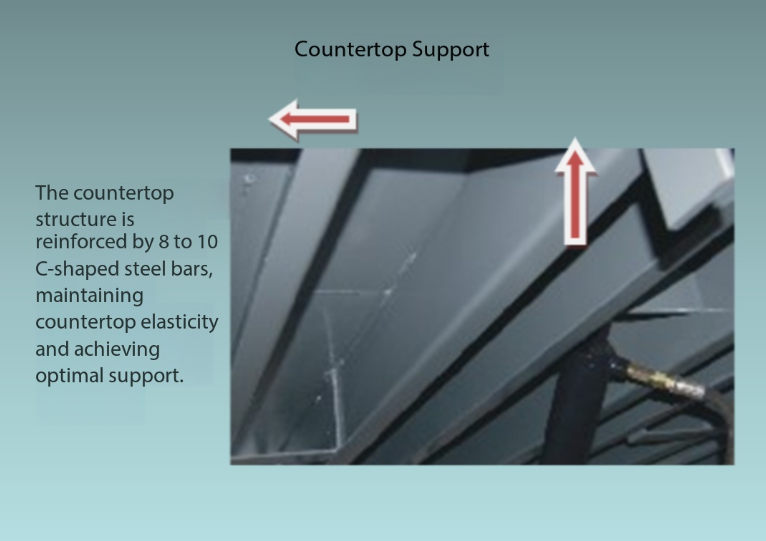

The inclined plate frame is made of 10 pieces of 140454 "C" shaped steel and 4mm thick reinforced side plates on both sides, which doubles the supporting force of the traditional channel steel and is more durable.
Tongue plate (length 400mm, whole anti-skid steel plate thickness 16mm) has anti-skid function, use strong and durable lift to adjust the weight of the plate, and cooperate with electric button control operation, simple, fast, convenient and reliable.
Full working range foot protection: to ensure the safety of the operator's feet.

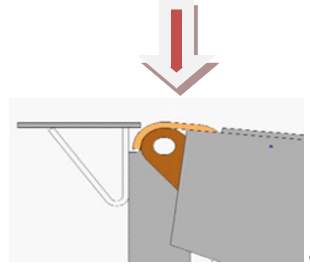

Unique smooth transition design, there is a smooth transition between the platform and platform and tongue plate, as shown in the figure, effectively avoiding forklifts,impact damage to platforms and unloading platforms.
Safety support system: In order to safely support the adjustment plate during equipment maintenance and overhaul.
Bottom structure for easy cleaning.
A pair of anti-collision glue with a thickness of 4″ (100mm) and a button control are presented as a gift.
Dynamic rated load: 8 T, static rated load: 13.6 T
Working range: 350MM above the platform / 300MM below the platform.
Electrical parameters: 380V/three-phase/60HZ/0.75KW.
Control system: CPU integrated control system, with screen display, display running status, running times, fault code and interlock, linkage expansion function.

Dock levelers configuration list

MODEL：
DL-H
UNIT：
piece
Load：
dynamic load 8000kg / static load 13600kg
Product size：
(W×L×H)2000*3000*600
Foundation pits size：
(W×L×H)2030*3000*610
Product color：
Grey, black, blue, green are available
Table Top：
8mm thick, Benxi anti-skid checkered steel plate
Tongue Plate：
16mm thick, the whole non-slip grooved steel plate
Skeleton under the table：
10 pieces of 140*45*4"C" shaped steel and reinforced side panels on both sides
Link Hinges：
Optional Tubular Bearing Hinge and Heavy Duty Open Hinge
Connecting shaft：
shaft diameter 28mm

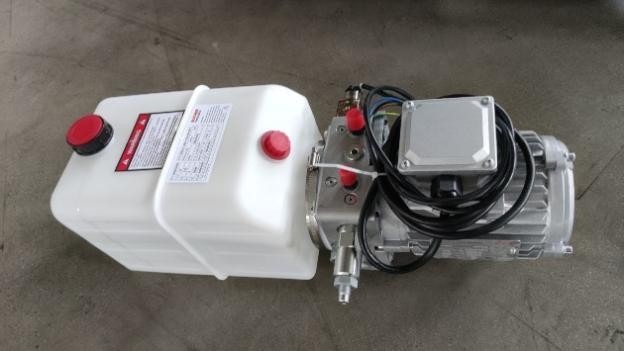

Hydraulic system：
BUCHER Swiss Bucher hydraulic unit (with emergency stop function), motor power 0.75KW 380V60HZ
Control system：
Equipped with one-button operation, power off control

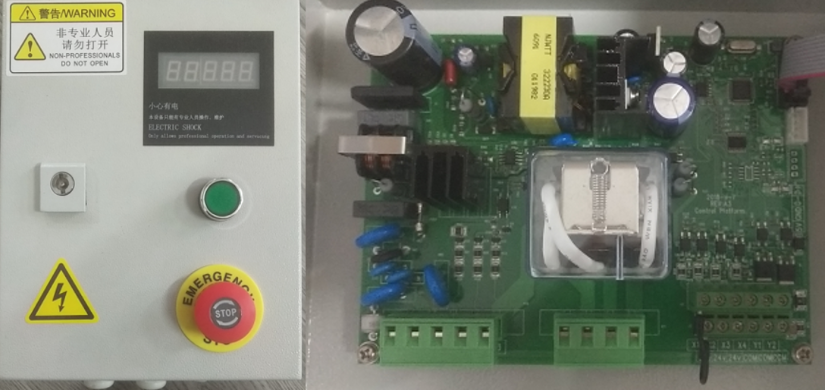

Electric control box
IP55 grade
Hydraulic cylinder
Design with 1 main lifting cylinders (main panel lifting) and auxiliary cylinders (overlapping plate); the hydraulic pipeline is simple
The hydraulic oil pipe
adopts the imported Goodyear brand, and the pressure value is 220 bar
Adjustment range:
+350/-300mm
Safety foot guard
a whole piece of foot guard, thickness 1.5mm
Operating temperature:
+50℃ - -25℃
Adjustment time
≤ 30 seconds (from any position to the corresponding maximum limit range)
Paint surface treatment:

The surface is pickled to remove rust and sandblasting, and the anti-rust paint, primer and topcoat are sprayed with automatic spraying equipment, and the thickness of the paint layer is 0.1mm.
Hydraulic oil tank capacity:
7L
Working pressure of hydraulic oil:
120bar
Tongue plate self-locking
yes, standard configuration
Repair support rod:
yes, standard configuration
Safety Hydraulic Lockout Valve:
yes, standard configuration
Adjustable speed hydraulic valve:
yes, standard configuration
Anti-collision block:
A pair of anti-collision blocks, the specification is 200mm×300mm×100mm;
Brush seal:
Optional
