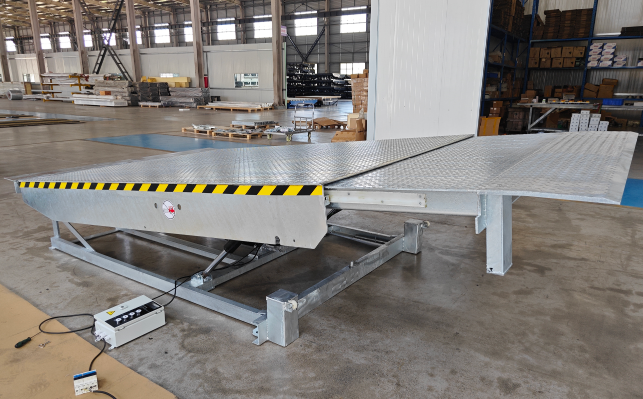

Hydraulic Telescopic Dock Leveler
If your loading dock handles different truck heights and requires fast, precise alignment, a standard dock leveler is not enough.
The GEAJIE Hydraulic Telescopic Dock Leveler is engineered to deliver maximum flexibility, safety, and durability, ensuring smooth and efficient loading operations in high-frequency logistics environments.
🚀 Why This Dock Leveler Improves Your Dock Performance
✔ Precise Telescopic Lip Control (0–700mm)
You gain flexible adjustment for different truck positions, ensuring accurate docking every time.
✔ High Load Capacity for Heavy Operations
- Dynamic Load: 8 Tons
- Static Load: 13.6 Tons
→ Built to handle intensive industrial applications
✔ Smooth Forklift Operation
Integrated transition design reduces impact and vibration, protecting both goods and equipment.
✔ Advanced Safety Protection
Anti-fall valve automatically stops descent within 75mm if a truck departs unexpectedly—keeping your operation safe.
⚙️ Key Technical Features

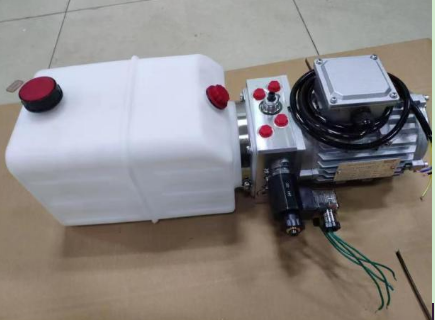

🔧 Hydraulic System (Swiss Bucher Technology)

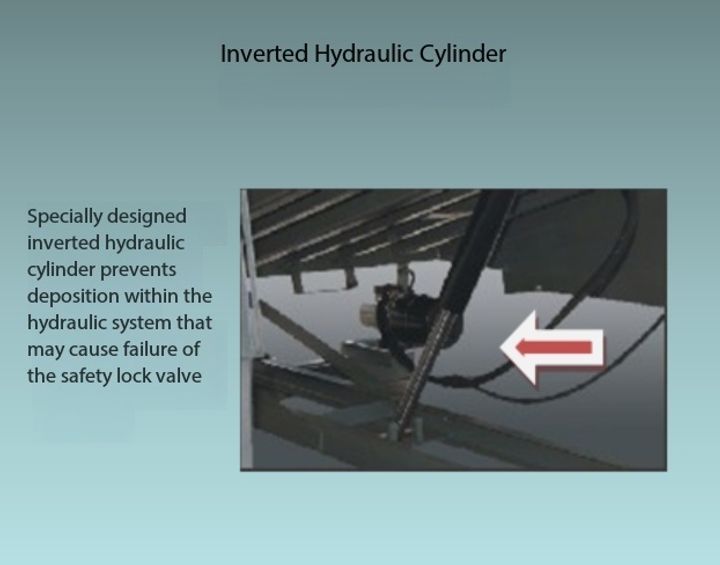

- Dual lifting cylinders + 1 telescopic cylinder
- Stable, precise, and long-lasting performance
- Equipped with:
- Speed control safety valve
- Anti-fall safety valve

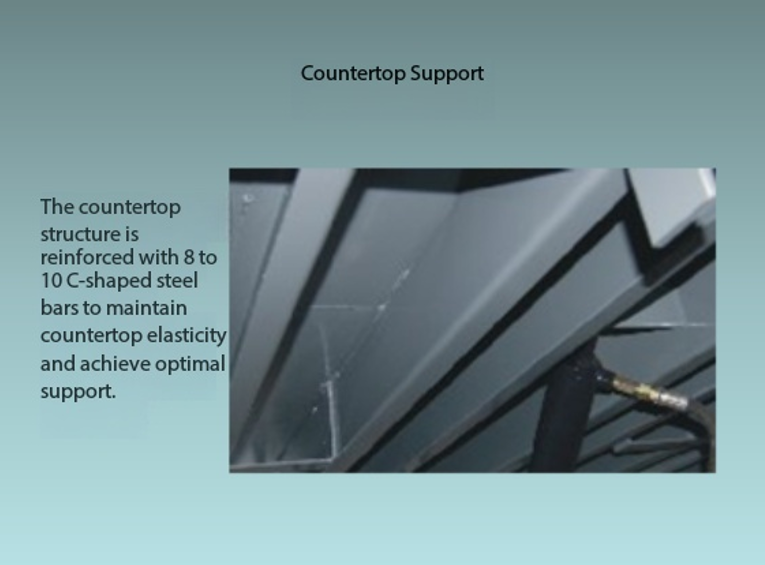

🏗️ Heavy-Duty Steel Structure
- Main deck: 8mm checkered steel plate
- Reinforcement: 8 sections of 140×5mm L-shaped steel
- Telescopic lip:
- Length: 700mm
- Thickness: 16mm steel plate
- Reinforced with #10 H-beam steel
→ Ensures long-term durability under high loads

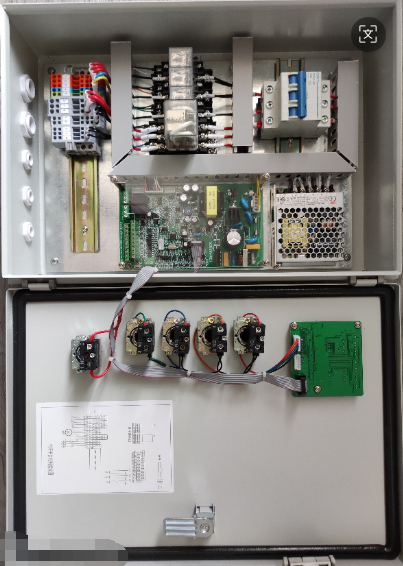

⚡ Electrical & Control System
- Voltage: 380V / 220V, 3 Phase, 50/60Hz
- Power: 1.1KW
- Control: CPU integrated system → Stable and easy operation with precise control
📏 Operational Performance
- Working Range: +450mm / -300mm
- Lifting Time: ≤16 seconds
- Lowering Time: ≤10 seconds
- Operating Noise: <50dB
🧩 Standard Configuration
Component | Specification |
|---|---|
Hydraulic System | Bucher (1.1KW) |
Hydraulic Seals | NOK |
Main Cylinders | 2 units |
Telescopic Cylinder | 1 unit |

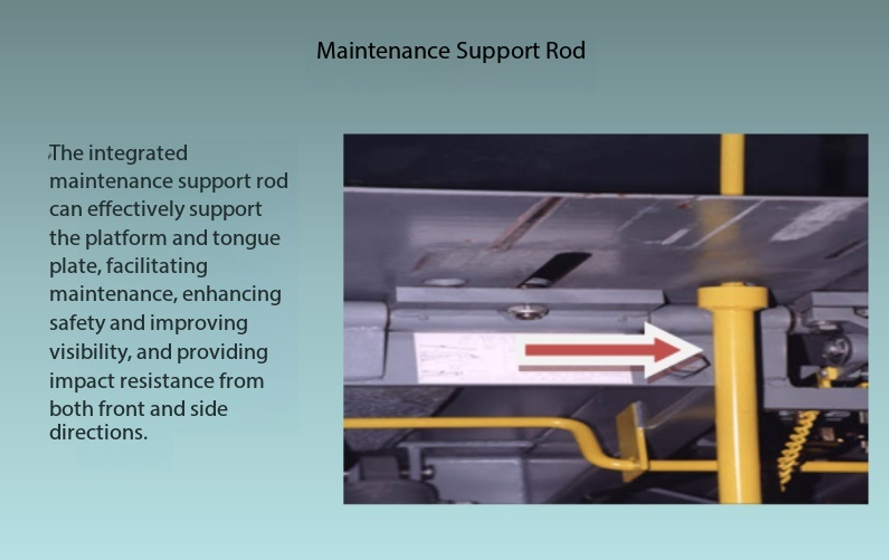

Safety Support Rod | 1 unit |
Anti-collision Rubber | 100mm thick |
Hydraulic Oil | 32# anti-wear, anti-freeze |
Working Pressure | 8MPa ±1MPa |
Oil Tank Capacity | 7L |
Surface Treatment | Sandblasting + anti-rust coating |
Color Options | Grey / Blue / Black |
🏭 Designed for Your Industry
This hydraulic dock leveler is ideal for:
- Warehouses & distribution centers
- Logistics hubs
- Manufacturing plants
- Cold storage facilities
- Heavy-duty loading environments
💡 What Makes This Telescopic Dock Leveler Stand Out
✔ High Precision Docking
Telescopic lip ensures accurate truck alignment.
✔ Maximum Safety Protection
Anti-fall system prevents accidents during unexpected truck movement.
✔ Long Service Life
Durable steel structure and premium hydraulic system support ≥200,000 cycles.
✔ Low Noise Operation
Improves working environment and operator comfort.
📈 Upgrade Your Dock Efficiency
A high-performance loading dock leveler helps you:
- Reduce loading time
- Improve safety
- Minimize equipment wear
- Increase operational efficiency
👉 Get Your Customized Dock Leveler Solution
Every dock is different.
Share your dock dimensions and load requirements to receive a tailored solution that maximizes your ROI.
How to Increase Loading Dock Safety？

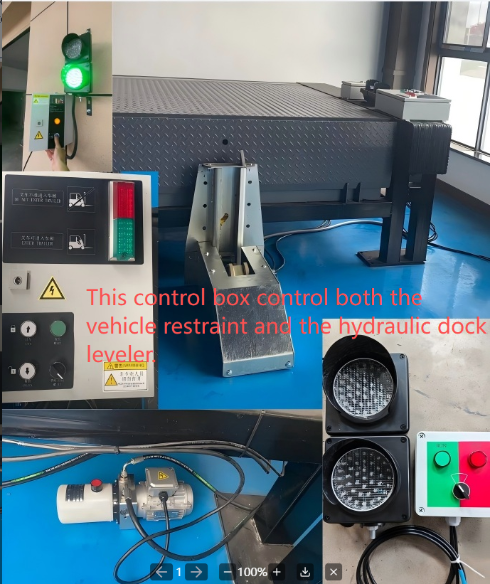

Safety is the top priority in every warehouse and loading dock. GEAJIE’s integrated system — combining the Hydraulic Dock Leveler, Vehicle Restraint, and DC24V LED Red-Green Signal Lamp — provides multiple layers of protection that work together to significantly reduce risks.
How This System Increases Safety:
- Stable Height Transition The Hydraulic Dock Leveler creates a smooth, level bridge between the truck and dock platform, supporting heavy dynamic loads (up to 6800kg) with reliable hydraulic control and safety lock valves. This prevents sudden drops or gaps that could cause forklift accidents.
- Secure Vehicle Restraint The Vehicle Restraint (with its flexible One Hook design and wide 260–650mm adjustment range) firmly locks the truck or container in place. It adapts to different vehicle heights and prevents the trailer from moving away unexpectedly during loading/unloading — one of the most common causes of serious dock accidents.
- Clear Visual Communication The Model 100 Red-Green Signal Lamp delivers instant, highly visible signals to all operators. • Green light: Safe to proceed with forklift traffic. • Red light: Stop immediately — area is not clear. This eliminates confusion and miscommunication between dock workers and drivers.
- Coordinated Operation Sequence Follow this safe workflow: • Position and level the platform first. • Engage the vehicle restraint before starting work. • Use the signal lamp to control access. • Only release the restraint after confirming the area is clear. By combining these three products, the system reduces collision risks, prevents unauthorized movement, improves operator awareness, and helps your facility comply with safety standards (such as OSHA guidelines). Additional Tips to Further Increase Safety: • Install the system with proper training for all operators. • Schedule regular maintenance checks on hydraulic components and restraint hooks. • Combine with GEAJIE Flexible Safety Guardrails (already indexed on your site) for full perimeter protection around the dock area. For Dealers: Offering this safety-enhanced loading dock system helps your customers reduce costly accidents and downtime. It positions you as a trusted full-solution provider, allowing you to win more competitive bids, increase sales of high-margin safety accessories, and grow your business by delivering measurable safety improvements.
