Dock Levelers

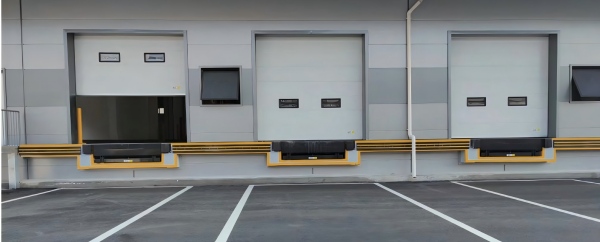

dock leveler

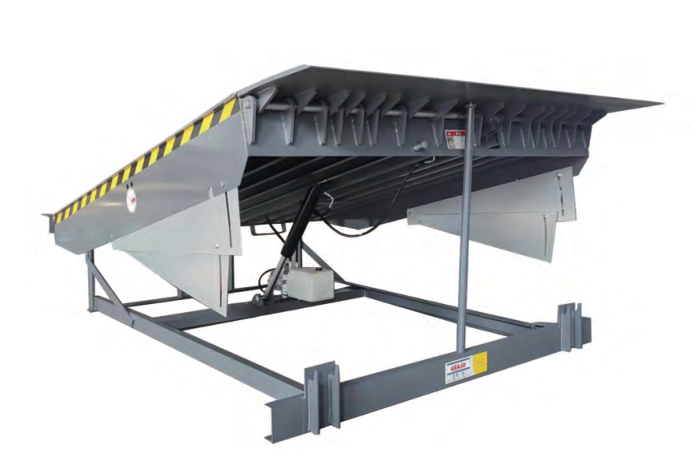

Hydraulic Dock Levelers

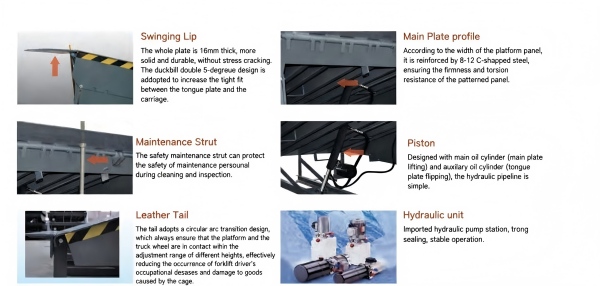

Optional Parts
|
|
|
|
|
|
|
|
|
Operation very convenient, make the loading and unloading job easy and fast improve Logistic Efficiency.
Technical Specifications | |
Standard Size (WLH) | 2000×2000×500 mm |
Dynamic Load/Static Load | 6800 kg / 10000 kg |
Height Adjustment Range | +350 mm / -300 mm |
Main Plate | 8 mm thick anti-slip patterned steel plate |
Lip Plate | 16 mm thick solid steel plate |
Standard Color | Dark gray / Black |
Structure | 8-12 C-beams under the panel, bottom steel structural frame |
Power Unit | Hydraulic power unit |
Operating Temperature | +50°C / -25°C |
Hydraulic Oil Working Pressure | 120 bar |
Hydraulic Oil Tank Capacity | 5 L |
Control Box | 24V low-voltage control, IP65 rating |
Safety | Safety control valve Full-range toe guard Maintenance support strut |

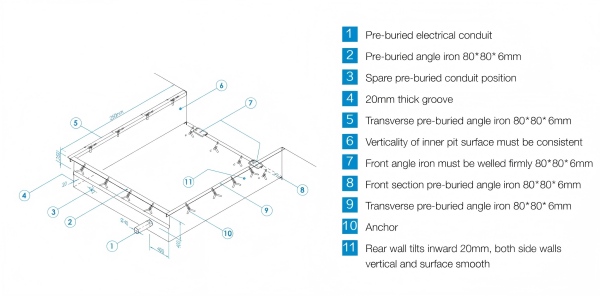

Dock Leveler Construction Pit

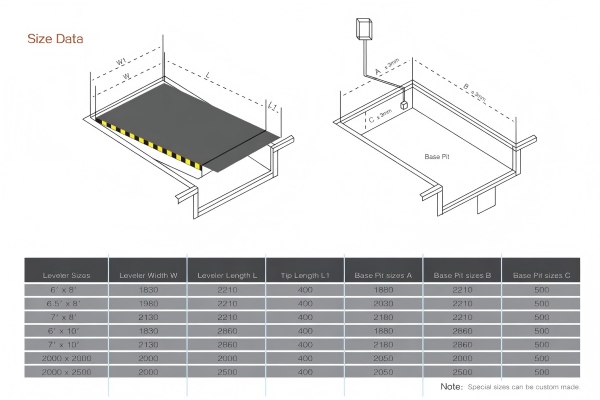

Dock leveler structure picture/ dimension chart

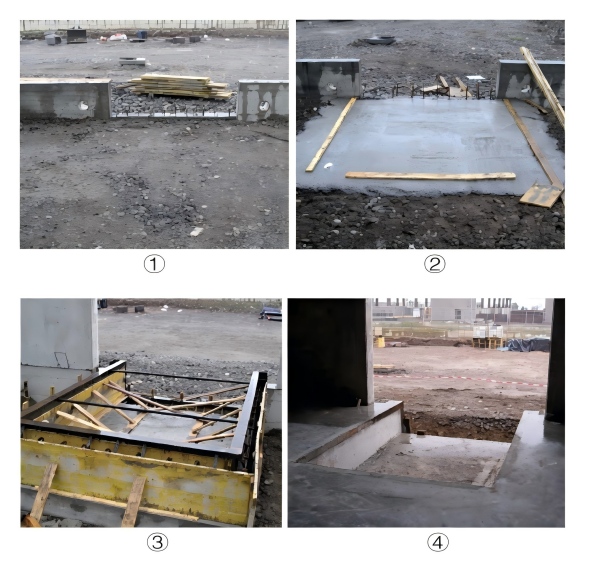

Production steps
Factors Determining Platform Length Selection
- Height of the truck carriage floor
- Designed height of the loading dock
- Type of handling equipment (forklift, pallet jack, etc.)
Platform Width Selection Depends on the Internal Width of the Truck Carriage
Considerations include receiving goods at the rear end when the vehicle is fully loaded, as well as loading/unloading efficiency when the truck floor is lower than the dock height.

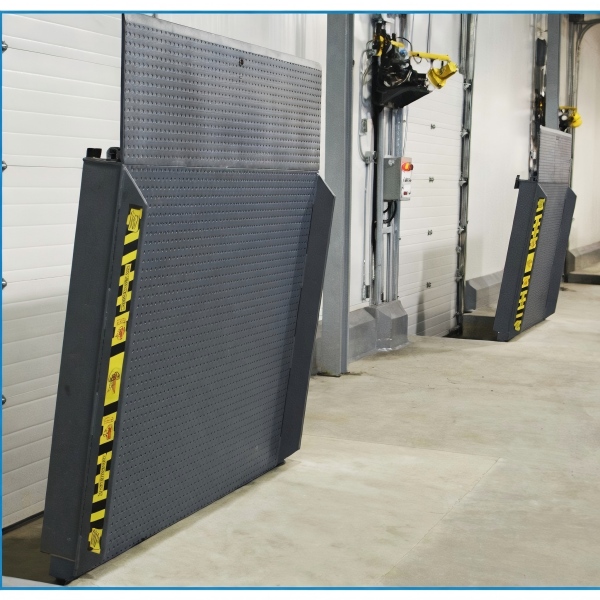

VERTICAL DOCK LEVELERS （DL-V )
DL-V Vertical Dock Levelers are products developed for cold storage unloading docks that require extremely high sealing and insulation. The vertical leveler is installed inside the cold storage. After the dock door descends to the bottom of the pit, the leveler is not exposed to the outside, preventing air convection. Used in conjunction with insulated cold storage rapid doors, it achieves complete sealing of the unloading dock.
APPLICATION ENVIRONMENT
Primarily used in places with high requirements for dock sealing and insulation, such as fresh produce, food, catering, and cold chain logistics.
PRODUCT CHARACTERISTICS
- Vertical storage effectively protects the dock door from impact.
- Ergonomically designed tail with a curved transition reduces forklift vibration during handling.
- The lip adopts a 5-degree duckbill design for smoother and easier docking.
- One-touch operation button controls the entire lifting and lowering process of the leveler.
TECHNICAL PARAMETERS
- Platform Width: 1830MM, 2000MM
- Platform Length: 1500MM, 1800MM, 2000MM
- Application Environment: Low-temperature environments requiring high sealing.
- Non-standard Sizes: Available for custom order.
- Lip Length: 500MM
- Deck Structure: 8MM high-strength patterned steel plate; different bottom reinforcement structures based on load capacity.
- Lip: 14MM or 16MM thick high-strength patterned steel plate, selected based on load capacity.
- Hydraulic Power Unit: Imported hydraulic system.
- Main Power Supply: 380V/0.75KW
- Safety Feature: Platform fall prevention function.
- Colors: Black, Grey, Blue, Green; other colors available upon request.
- Load Capacity: Dynamic load 6-10 tons.

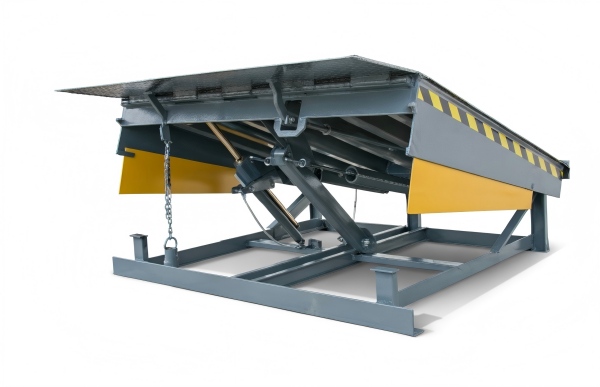

DL-M Mechanical Dock Levelers
- Suitable for locations without power supply; can be used in conjunction with other electric platforms to ensure normal operation even during power outages.
- Unique balance system ensures a smooth and continuous lowering process.
- Relatively high maintenance requirements.

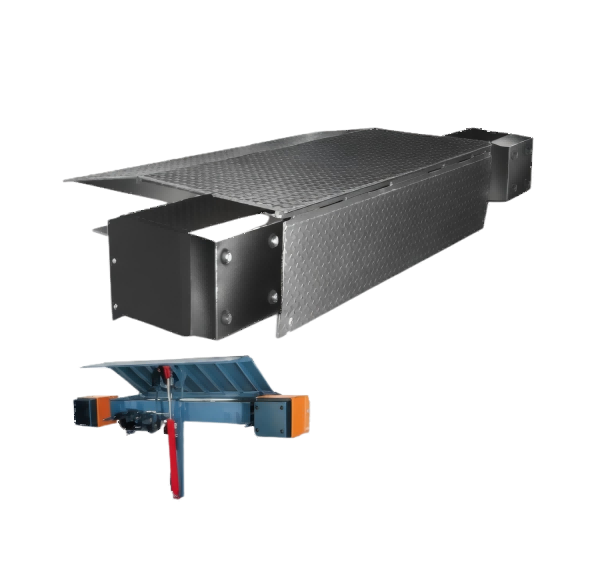

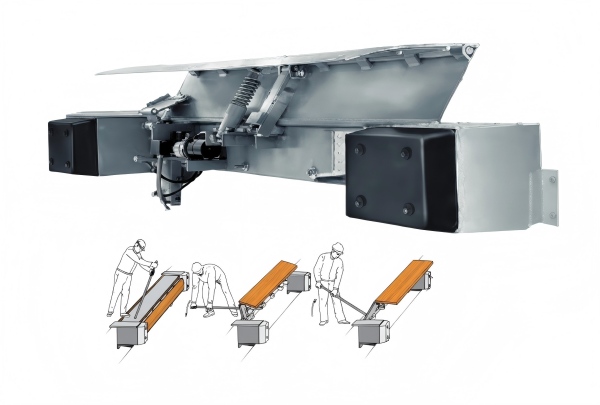

EOD Dock Levelers
- Suitable for loading docks that have already been constructed but do not have pre-set pits.
- Available in both mechanical and hydraulic operation modes.
- Simple operation, saving time and space.
- Constructed from galvanized steel or aluminum alloy, making them robust and durable.
EOM Dock Levelers
Suitable for loading docks that have already been constructed but do not have pre-set pits.
Wide height adjustment range.
Simple operation, saving time and space.
