DHK Edge-of-Dock Electric Simple Platform | Hydraulic Edge of Dock Leveler

GEAJIE DHK Edge-of-Dock Electric Simple Platform powered by DL-H hydraulic system. 6800kg dynamic load, +350/-300mm range, one-button operation. Ideal hydraulic edge of dock leveler for space-limited warehouse loading docks.

DHK Edge-of-Dock Electric Simple Platform

Why Choose GEAJIE DHK Hydraulic Edge of Dock Leveler

The DHK Edge-of-Dock Electric Simple Platform is the smart choice for warehouses needing fast and reliable truck loading height adjustment with minimal installation space.

Full hydraulic-electric control with dual inverted cylinders for smooth operation

High-strength 8mm Baosteel anti-slip deck + 400mm × 16mm self-locking lip plate

Reinforced C-type steel frame — twice the support strength of traditional designs

One-button operation with reliable safety hydraulic lock valve

Includes pair of 100mm dock bumpers as standard

Fast height adjustment: full +350 mm / -300 mm range in ≤ 30 seconds

Discover Full Specifications of DHK Edge of Dock Leveler

DHK Edge-of-Dock Electric Simple Platform Technical Specifications

Parameter	Specification
Model	DHK Edge-of-Dock Electric Simple Platform
Dynamic Load Capacity	6800 kg
Static Load Capacity	13600 kg
Platform Size (W×L×H)	2000 × 1200 × 400 mm
Lip Plate	400 mm long × 16 mm thick patterned steel
Working Range	+350 mm / -300 mm
Adjustment Time	≤ 30 seconds
Power Supply	380V / 3-phase / 50Hz / 0.75 kW
Hydraulic System	Swiss Bucher motor + NOK seals + safety lock valve
Deck Material	8 mm Baosteel anti-slip patterned steel
Frame Reinforcement	8 × C-type steel beams
Operating Temperature	-25°C to +50°C

Request Quote for DHK Hydraulic Edge of Dock Leveler

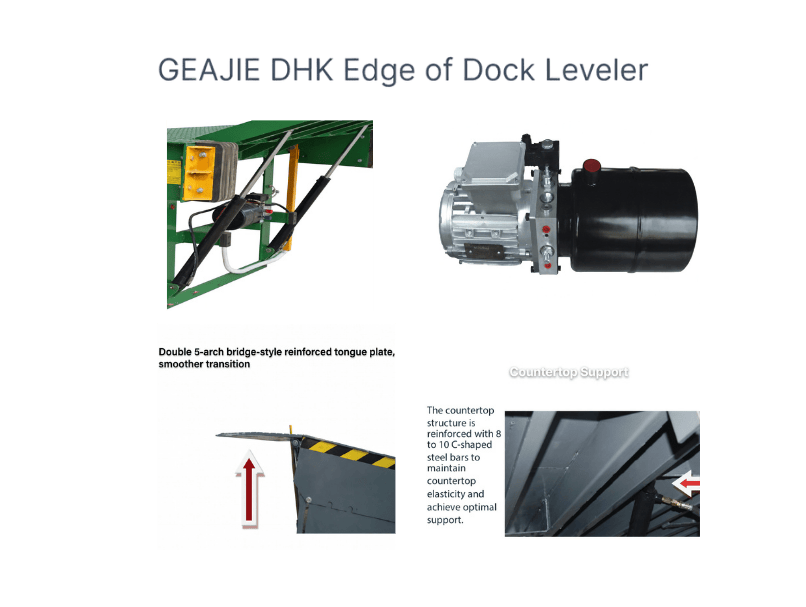

Robust Construction of DHK Hydraulic Edge of Dock Leveler

Anti-slip 8mm steel deck with reinforced C-type frame for heavy loads

400mm self-locking lip plate ensures safe and smooth truck transition

Dual hydraulic cylinders with simple, reliable piping and speed control

Open bottom design makes cleaning and maintenance easy

Complete safety system: maintenance support bar, hydraulic lock, foot guard

Ideal Applications for DHK Edge of Dock Leveler

Warehouse loading docks with limited or no pit depth

Distribution centers and e-commerce fulfillment warehouses

Manufacturing plants with frequent truck changes

Cold storage and food logistics facilities (-25°C to +50°C)

Find the Right Hydraulic Edge of Dock Leveler for Your Facility

Download DHK Edge of Dock Leveler Resources

FAQ – DHK Edge of Dock Leveler

Q: What is a DHK Edge-of-Dock Electric Simple Platform? A: It is a compact hydraulic edge of dock leveler installed at the dock edge, providing fast height adjustment without requiring a deep pit.

Q: How fast can the DHK edge of dock leveler adjust height? A: The full +350 mm to -300 mm range is completed in ≤ 30 seconds with simple one-button operation.

Q: Is the DHK hydraulic edge of dock leveler suitable for cold storage? A: Yes, it operates reliably in temperatures from -25°C to +50°C.

Q: What safety features does the DHK edge of dock leveler include? A: Maintenance support bar, hydraulic safety lock valve, self-locking lip plate, and protective foot guard.

Q: Can I use DHK as a replacement for traditional pit dock levelers? A: Absolutely — it is the ideal retrofit solution for space-limited docks.
