Custom Steel Electric Roller Shutter Doors – Industrial Rolling Shutter Door Manufacturer
Precision-engineered galvanized steel electric roller shutters with full customization, quiet high-cycle operation, and superior wind/corrosion resistance. Perfect for warehouses, factories, and loading docks. Pair with GEAJIE flexible crash barriers and dock systems for complete one-stop safety solutions – expand your product line and win more profitable projects.
Get Custom Quote | Download Installation Guide | WhatsApp Dealer Support
Unique Selling Points
Fully customizable sizes, slat thickness (0.8–1.5 mm), colors & configurations
Superior galvanized steel for excellent corrosion and wind resistance (up to Class 4)
Smooth, quiet electric operation with manual override for emergency use
Built-in safety: anti-lift lock, bottom safety edge, precise limit switch
ISO 9001:2015 & CE certified – manufactured by Dongtai Geajie Intelligent Equipment Co., Ltd.
One-stop GEAJIE ecosystem: Integrate seamlessly with flexible anti-collision barriers, anti-collision columns, dock shelters, and high-speed doors to deliver turnkey warehouse safety systems that help dealers close larger contracts faster.
Structure & Installation

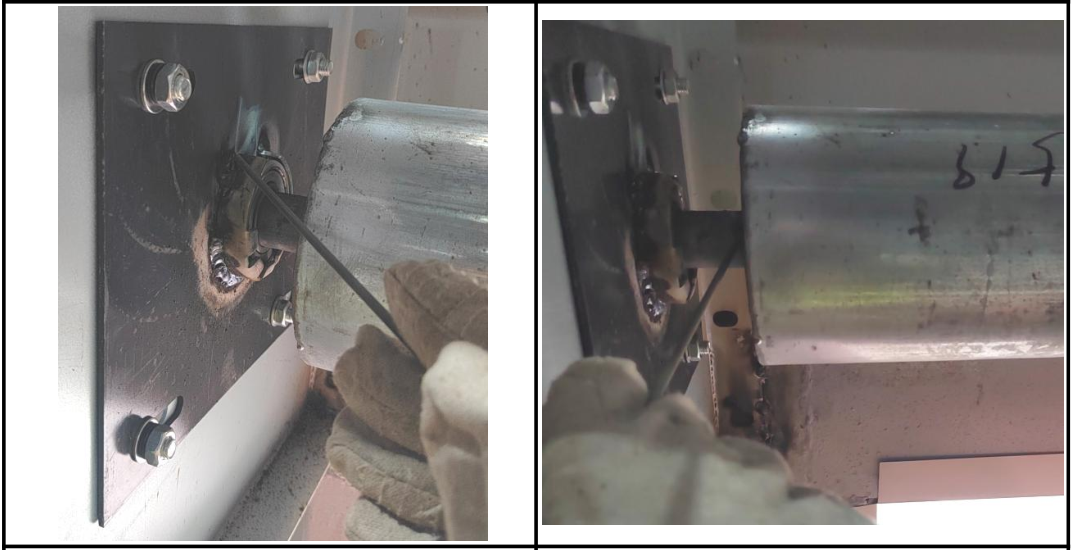

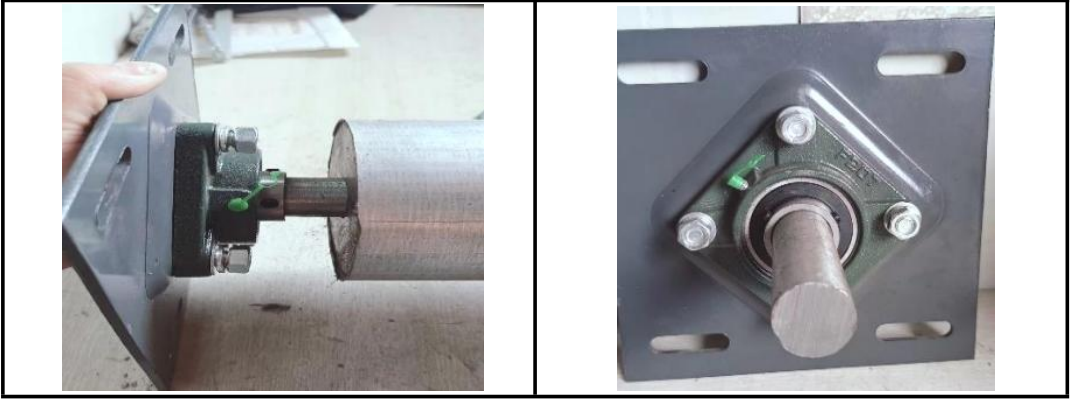

Every GEAJIE steel electric roller shutter door is precision-engineered for smooth, quiet, and reliable long-term performance. The prefabricated pivot shaft (main beam tube) and reinforced motor main & auxiliary frame plates ensure friction-free rotation without obstruction or abnormal noise.
Key Installation Standards:
• Header extends 150 mm on each side of the door opening
• Track height extends 150 mm above the opening

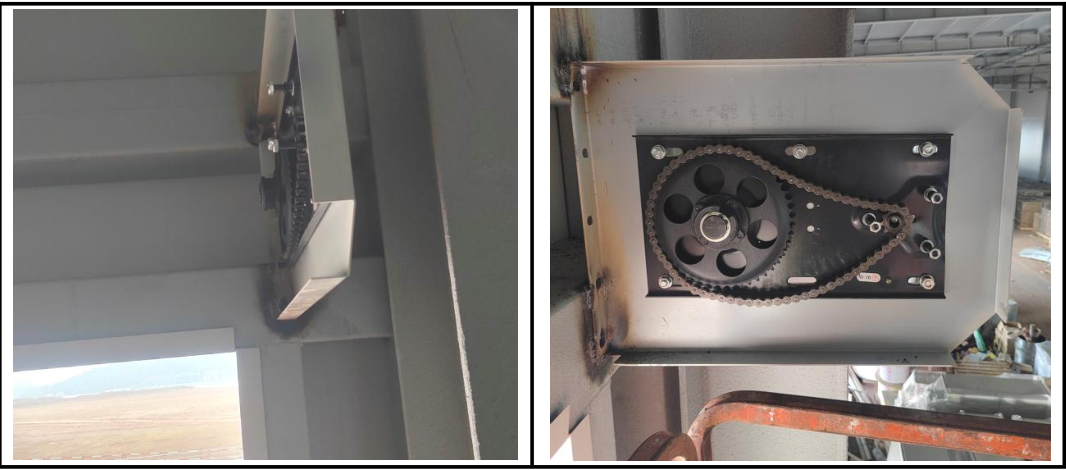

• Motor main and auxiliary frame plates positioned 150 mm away from the opening on both sides
• Bottom elevation of frame plates 90 mm lower than the top of the track
• Guide rails fixed at intervals of ≤ 600 mm using self-tapping screws or expansion bolts (additional welding optional on steel structures)
Guide Rail Installation: Use infrared level and tape measure for perfect vertical alignment. Fixed with self-tapping screws or expansion bolts at ≤600 mm intervals. Extra welding points available for steel-structure openings.
Detailed official installation manual, remote technical support, and on-site assistance available upon request.
Technical Specifications
| |
| High-Quality Galvanized Steel |
| Customizable (0.8–1.5 mm standard) |
| Fully customizable per project |
| Custom (up to project requirements) |
| Electric (220V/380V) + Manual Override |
| Powder Coating / Anti-Corrosion |
| Anti-lift lock, bottom safety edge, emergency manual override, precise limit switch |
Advanced Safety & Operation
- Electric Operation: Button box (Open / Stop / Close) or optional remote control
- Manual Operation: Chain system for emergency use only
- Built-in safety features include anti-lift lock, bottom safety edge, emergency manual override, and precise limit switch for strong wind resistance and full protection.
Usage Precautions:
- Operator must stay in line of sight until the door fully stops
- No person or object may pass under a moving or partially open door
- Never stand under the door curtain or insert hands/objects into gaps
Applications & Real Scenes
GEAJIE steel electric roller shutter doors deliver outstanding performance in demanding logistics and industrial settings where speed, security, and energy efficiency directly impact profitability.
Real Case – European 3PL Warehouse: A major third-party logistics provider replaced outdated manual doors with our custom 1.2 mm galvanized steel electric roller shutters across 12 loading bays. Results: opening/closing time reduced by 40% (from ~60 s to ~20 s per cycle), cutting HVAC energy loss during frequent truck movements. Annual savings exceeded $12,000 in energy and maintenance costs, with zero weather-related downtime in the first year. Operators praised the quiet operation and reliable emergency manual override.
Other Applications: Cold storage (insulated versions maintain temperature control), manufacturing plants (withstand daily forklift traffic), and commercial garages (compact designs with excellent wind resistance).
Pairing these doors with GEAJIE flexible crash barriers and anti-collision columns creates a complete “zero-downtime” safety system – an easy upsell that helps dealers offer higher-margin, turnkey warehouse protection packages.
Selection Guide
Performance Comparison by Slat Thickness
| | | | | |
|---|
| | | | | Light commercial / garages |
| | | | | Warehouses / 3PL logistics |
| | | | | Heavy industrial / cold storage |
Vs Ordinary Rolling Doors
- Energy consumption: GEAJIE sealed design reduces HVAC loss by 25–35%
- Lifespan: 20+ years vs 8–12 years for standard doors
- Maintenance: 40–50% lower due to galvanized coating and robust motors
Industry Selection Recommendations
- Warehouse / 3PL: Electric high-cycle models (≥50 cycles/day) + insulated slats for energy savings.
- Factory / Manufacturing: Fire-rated options + reinforced guides for high-impact areas.
- Garage / Commercial: Compact manual-override versions with aesthetic powder coating.
Installation Size Calculation Formula
Opening Width + 300 mm (150 mm each side for header) = Finished Width
Opening Height + 150 mm (track extension) = Finished Height
(Use laser measure for plumb/level accuracy)
Self-Assessment Checklist (for dealers & end-users)
- Daily cycles >30? → Choose heavy-duty motor
- Temperature control required? → Add insulation
- Wind exposure high? → Select ≥1.2 mm slats + wind locks
- Integration with dock systems / safety barriers needed? → Yes → Contact GEAJIE for full solution
Simple ROI Calculator Formula
Annual Time Loss (hours) = Daily Cycles × Average Delay (seconds) × 365 / 3600
× Labor/Energy Cost per Hour = Annual Cost
(Example: 50 cycles/day × 10 s delay saved = ~182 hours/year saved – multiply by your local rates for instant ROI projection)
Resources
- Download: Full Installation & Maintenance Guide PDF
- Case Studies: 3PL Warehouse Energy Savings Report
- Video: Electric Roller Shutter Operation Demo
- Blog Link: “How to Pair Roller Shutters with Flexible Crash Barriers for Maximum Warehouse Safety” (internal link to Safety Protection page)
FAQ
Q: How much faster are GEAJIE electric shutters vs manual doors?
A: Up to 40% faster operation, directly reducing energy loss and improving throughput.
Q: What is the typical ROI for a 3PL warehouse installation?
A: Most clients see payback in 12–18 months through energy savings and reduced maintenance.
Q: Can these doors integrate with our existing dock shelters and safety barriers?
A: Yes – GEAJIE offers complete one-stop systems.
Q: How do I calculate the correct motor size?
A: Use door weight, drum radius, and safety factor (detailed formula in Resources).
Q: What maintenance is required?
A: Clear guide rails quarterly and lubricate chain annually – far less than ordinary doors.
Q: Do you offer fire-rated or insulated versions?
A: Yes, custom options available for cold storage or high-risk factories.
Q: Lead time for custom sizes?
A: 15–30 days standard; expedited options available.
