Edge of Dock Leveler EOD | Manual Mechanical Edge-of-Dock Leveler 5 Ton | No-Pit Loading Dock

Discover the GEAJIE EOD Manual Edge of Dock Leveler – reliable 5-ton mechanical solution with no pit required. 2130×660×200mm platform, 8mm anti-skid deck, 16mm lip, +200/-120mm range, and balance springs. Perfect for existing docks, warehouses, cold storage, and logistics. Instant quote & specs PDF available. One-stop loading dock systems provider.

Service Details

Training Duration2 days
Group Size20-50 people
Training ModeIn-person intensive training
Contact Us

Edge of Dock Leveler EOD – Manual Mechanical 5-Ton Edge-of-Dock Leveler (No Pit Required)



Why Choose GEAJIE EOD Manual Edge of Dock Leveler?

  • Mechanical spring-balanced design for simple, reliable manual operation – no electricity or hydraulics required
  • Heavy-duty 8mm anti-skid deck plate + 16mm anti-skid lip plate for maximum durability and safety
  • Robust 10×50mm under-deck support frame (8 sets) + 12mm thick open hinges and 28mm axle
  • Wide adjustment range of +200mm / -120mm with 2 sets of balance springs – ideal for retrofits
  • Professional surface treatment: acid pickling, sandblasting, and multi-layer anti-rust coating

EOD Manual Edge of Dock Leveler Technical Specifications (5-Ton)

Parameter
Specification
Model
EOD-S (Non-Standard) Manual Edge of Dock Leveler
Load Capacity
5 Tons
Platform Dimensions
W2130 × L660 × 200 mm
Deck Plate
8mm thick anti-skid steel plate
Lip Plate
16mm thick anti-skid steel plate
Under-Deck Support Frame
10×50mm, 8 sets
Hinges
12mm thick open hinge
Balance Springs
2 sets
Axle Diameter
28 mm
Adjustment Range
+200mm / -120mm
Surface Treatment
Acid pickling & sandblasting + automated anti-rust paint, primer & topcoat (0.1mm thickness)
Platform Color
Gray

Download Full Spec Sheet PDF

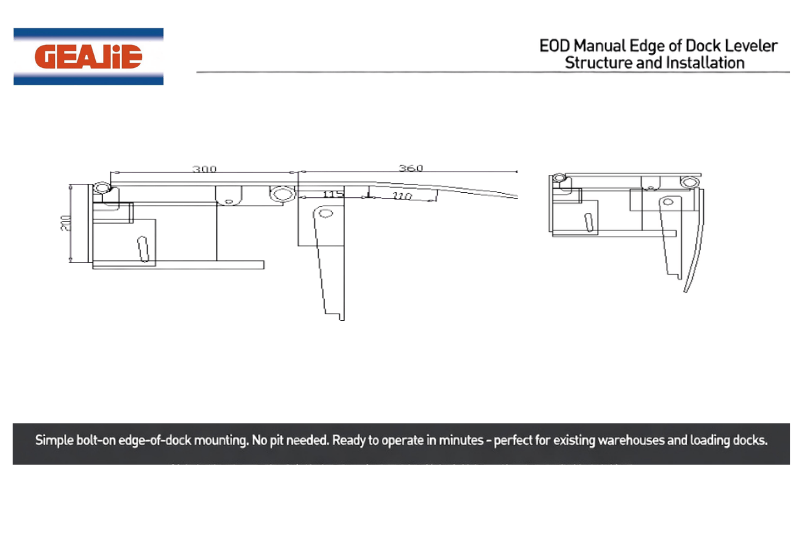

EOD Manual Edge of Dock Leveler Structure and Installation


Simple bolt-on edge-of-dock mounting. No pit needed. Ready to operate in minutes – perfect for existing warehouses and loading docks.

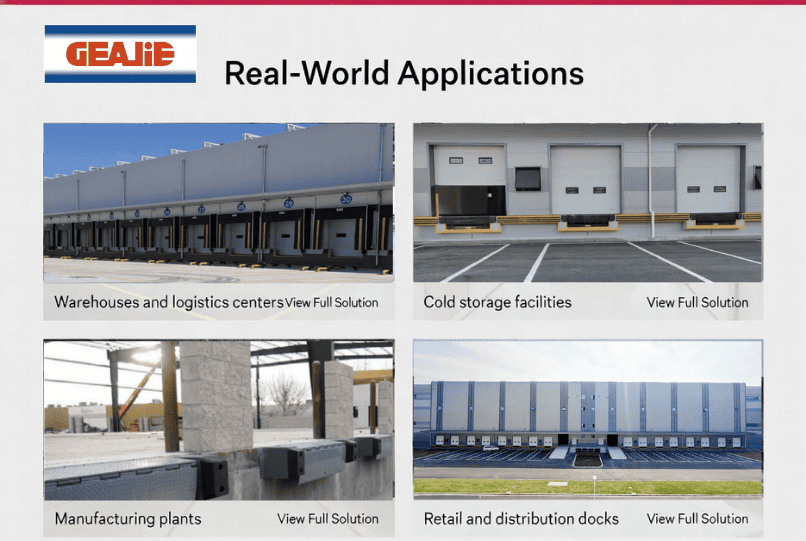

Real Applications of the EOD Manual Edge of Dock Leveler


  • Warehouses and logistics centers
  • Cold storage facilities
  • Manufacturing plants
  • Retail and distribution docks

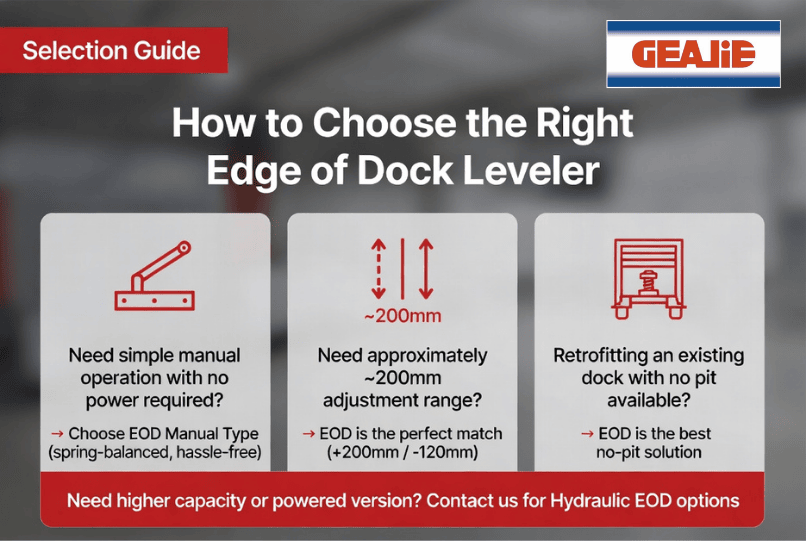

How to Choose the Right Edge of Dock Leveler


• Need simple manual operation with no power source? → EOD Manual is ideal • Require greater lift range or powered operation? → Ask about our Hydraulic EOD versions (6–15 ton available) • Retrofitting an existing dock without a pit? → EOD series is the perfect no-pit solution
Note: GEAJIE also offers electric/hydraulic Edge-of-Dock Levelers for higher-capacity or automated needs.

Download Resources & Related Loading Dock Products


• Download EOD Manual Spec Sheet PDF • Download Installation Guide • Request CAD Drawings

Related Products :

• Hydraulic Edge of Dock Leveler (6–15 ton) • DL Series Pit-Style Dock Levelers • DSI Dock Shelters & Seals


Frequently Asked Questions – EOD Manual Edge of Dock Leveler

  1. What is an edge of dock leveler? An edge-of-dock leveler mounts directly to the face of the dock without a pit, making it ideal for existing facilities.
  1. How does the manual EOD operate? Spring-balanced mechanical system – simply pull the chain or use the handle to raise and lower.
  1. Is the EOD suitable for cold storage? Yes – robust steel construction and anti-rust coating perform well in cold environments.
