GEAJIE INDUSTRIAL DOORS
Roll-up, stacking and flexible lift doors for factory traffic, clean workshops, cold storage and large industrial openings. Compare the GFR and GFP ranges, then match the door to your opening, environment and daily operation.
PRODUCT VIEW
PVC curtains, vision windows and opening controls can be selected for the way people and goods move through your facility.

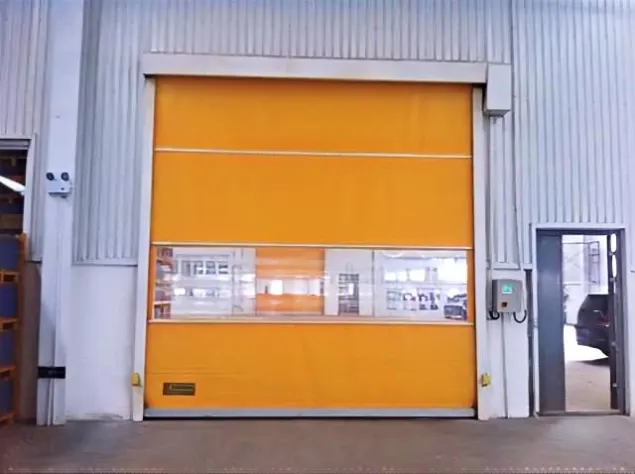

A compact roll-up curtain with a horizontal vision panel. Final dimensions, controls and safety devices are specified for each project.
GEAJIE door and factory imagery. Select the GFR or GFP configuration below according to the operating environment and opening size.
GFR & GFP SERIES
Catalogue reference specifications are shown below. Final size, speed, frame, wind load and safety configuration depend on the selected model and project. Confirm all requirements before ordering.
For internal factory and warehouse passages. Catalogue maximum: W 5,500 x H 5,500 mm. Opening: 0.8-1.2 m/s; closing: 0.6-1.0 m/s. Painted galvanized steel or aluminum-alloy frame, with an aluminum bottom edge.
For indoor clean production areas. Stainless-steel frame with an aluminum bottom edge. Catalogue maximum: W 4,500 x H 4,500 mm. Opening: 0.8-1.2 m/s; closing: 0.6-1.0 m/s. Match the configuration to the site hygiene requirements.
A displaced curtain can be returned to the guides using the reset control. EPDM soft bottom edge. Catalogue maximum: W 5,500 x H 5,500 mm. Opening: 0.8-1.2 m/s; closing: 0.6-1.0 m/s. For indoor or outdoor passages, subject to site conditions.
After the curtain leaves its guides, the recovery system returns it during the operating cycle. EPDM soft bottom edge. Catalogue maximum: W 5,500 x H 5,500 mm. Opening up to 2.4 m/s; closing 1.2 m/s. Site safety review remains essential.
For external industrial openings. Catalogue wind load up to 1,000 N/m²; suitability depends on door size and exposure. Catalogue maximum: W 5,500 x H 5,500 mm. Opening: 0.8-1.2 m/s; closing: 0.6-1.0 m/s. EPDM soft bottom edge.
Insulated curtain and anti-freezing heating provision for cold-chain passages. Catalogue temperature range: +5 °C to -30 °C. Maximum: W 4,000 x H 5,500 mm. Opening: 2.4 m/s; closing: 1.2 m/s. Confirm condensation, heating and frame requirements.
A vertically stacking PVC curtain for indoor or outdoor industrial openings. Painted galvanized steel or stainless-steel frame, with an aluminum bottom edge. Opening: 1.0 m/s; closing: 0.6 m/s. Maximum dimensions require project confirmation.
A double-layer PVC door for large exterior openings. Catalogue opening and closing speed: 0.3 m/s. Wind load: 0.7-1.6 kPa, depending on dimensions. Temperature range: -35 °C to +70 °C. Opening size and structural requirements are reviewed for each project.
PROJECT PLANNING
Choose the door around the opening, traffic and operating environment. The catalogue is a reference; the approved project specification and installation drawing take precedence.
For a quotation, use an enquiry link above and include opening dimensions, site photos, temperature range, traffic type, power supply and required quantity.
