How to Fix Grinding Noises in Electric Roller Shutter Doors?
Dongtai Geajie Intelligent Equipment | Practical Guide to Steel Electric Roller Shutter Door Installation and Maintenance Electric roller shutter doors are widely used in industrial warehouses, factor
Dongtai Geajie Intelligent Equipment | Practical Guide to Steel Electric Roller Shutter Door Installation and Maintenance
Electric roller shutter doors are widely used in industrial warehouses, factory workshops, and commercial storefronts. However, many users report grinding, squeaking, or rubbing noises during operation. These sounds not only affect the user experience but can also shorten the door’s service life.
Today, based on real installation cases and the official installation manual of Geajie steel electric roller shutter doors, we provide a detailed analysis of the common causes of noise and practical solutions.
1. Three Main Causes of Noise in Electric Roller Shutter Doors
- Lack of lubrication or worn bearings After prolonged use, the pivot shaft (main beam tube) bearings lose lubrication or become worn, producing obvious friction noise.
- Misaligned components during installation Deviations in the horizontal or vertical alignment of the motor main & auxiliary frame plates, guide rails, or pivot shaft cause parts to interfere with each other during operation.
- Foreign objects or uneven gaps in the guide rails Non-standard guide rail spacing, loose fixings, or dust/debris inside the rails lead to unsmooth curtain movement.
Reference diagram (for understanding only):
[Insert the “Causes of Grinding Noises in Roller Shutters” illustration here]
In actual engineering projects, we strongly recommend using real installation photos to demonstrate the solutions (see below).
2. How to Prevent Noise from the Installation Stage (Geajie Installation Standards)
Geajie steel electric roller shutter doors are delivered with a prefabricated pivot shaft (main beam tube). When installed according to the following standards, the door achieves “smooth rotation with no obstruction or abnormal noise.”

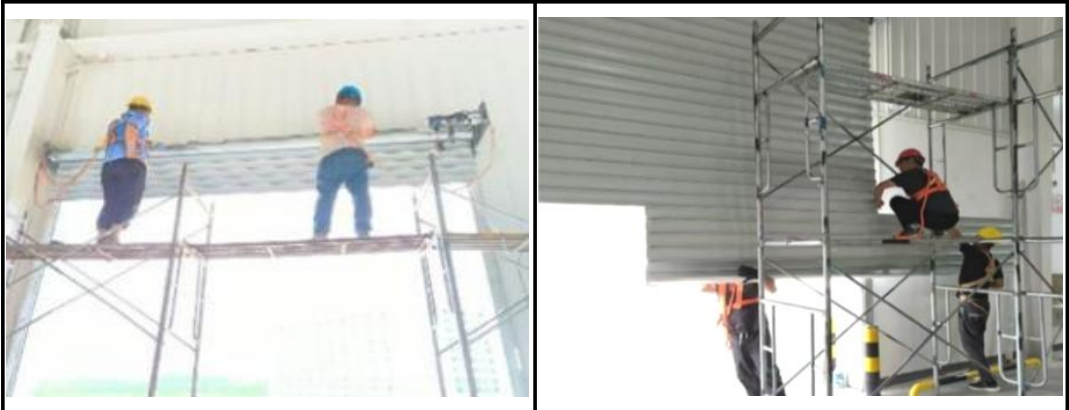

Key Installation Points (with real installation photos):

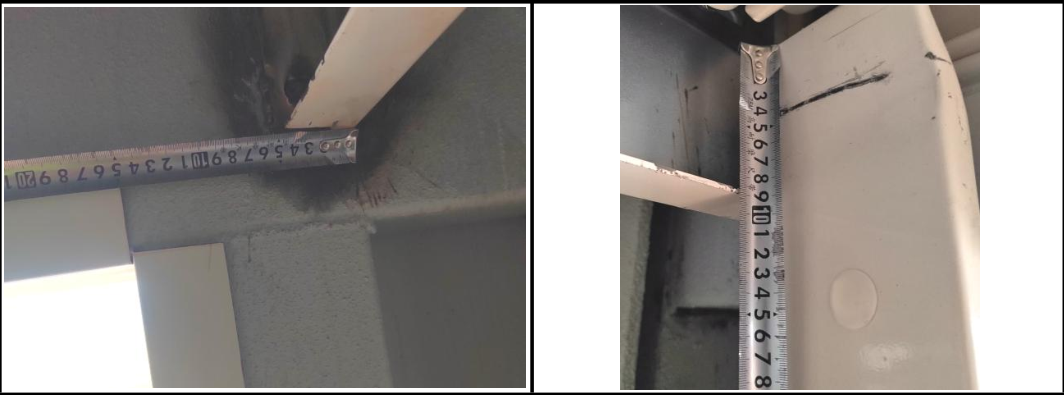

→ The main and auxiliary frame plates must be precisely positioned using a laser level and tape measure, 150 mm away from both sides of the door opening, with the bottom elevation 90 mm lower than the top of the track.
→ The bearing centerlines on both sides must be horizontally parallel. Manually rotate the pivot shaft — it should turn smoothly with no obstruction or abnormal noise before final welding.
→ Guide rails must be fixed at intervals of ≤ 600 mm using self-tapping screws or expansion bolts. For steel-structure openings, additional welding points are recommended for extra stability.
3. Daily Maintenance Tips (Fix 90% of Noise Issues in 3 Minutes)
- Check both guide rails monthly for foreign objects or dust and clean promptly.
- Apply an appropriate amount of lubricating oil or grease to the motor drive chain and sprockets every 3 months.
- Avoid frequent use of the manual chain (emergency use only) to maintain limit switch accuracy.
4. Why Choose Geajie Steel Electric Roller Shutter Doors?
- Made from high-quality galvanized steel with powder coating or anti-corrosion treatment
- Prefabricated pivot shaft for direct on-site installation
- Strict adherence to 150 mm positioning and ≤ 600 mm guide rail spacing standards
- ISO 9001:2015 and CE certified, trusted by global clients
Need free installation guidance or a custom solution?
Click the button below or contact us to receive the official Steel Electric Roller Shutter Door Installation Manual PDF and professional technical support.
